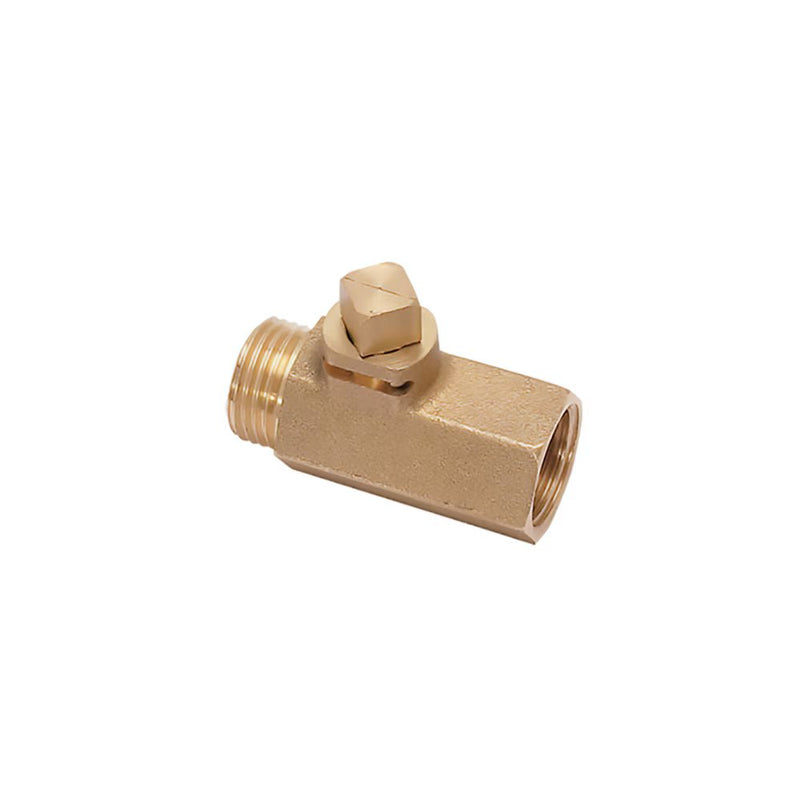

0496 07 17 by Parker | Legris Square Stem Ball Valve | 3/8" Male BSPP Thread x 3/8" Female BSPP Thread | 22 mm Hex | Straight | Brass | Pack of 10

Save $164.09

$410.22

$410.22 - $410.22

$410.22

$246.13

$246.13 - $246.13

$246.13

by Parker Hannifin
Universal Light Series:0496 2/2 Ball Valve, Square Stem, Male/Female BSPP Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0496 07 17 Parker \| 10 \|
Series:	0496 Series
Shape (Orientation):	Straight
Material(s):	Brass, Rilsan Graphited, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Repositionable Handle, Exchangeable Handle

Technical Characteristics:	Compatible Fluids: Industrial fluids Working Pressure: Vacuum up to 12 bar Working Temperature: -20°C to +80°C
Advantages:	Compactness Corrosion resistance due to chemical nickel plating Automatic compensation of seal wear Repositionable and exchangeable handles
Regulations:	RoHS PED REACH
Component Materials:	Body: Shot-blasted brass or shot-blasted nickel-plated brass Stem: Brass Stem seal: NBR Seat seal: Graphite-impregnated polyamide Ball: Nickel-Plated Polished Brass Wear-compensation seal: NBR Lever: Polymer or Zamak


Part Number	Diameter Nominal (DN)	C	E	E1	F	H	J	L	L1	Kg
0496 07 17	7 mm	3/8"	8 mm	11 mm	22 mm	26 mm	7 mm	45 mm	20 mm	.118 Kg
