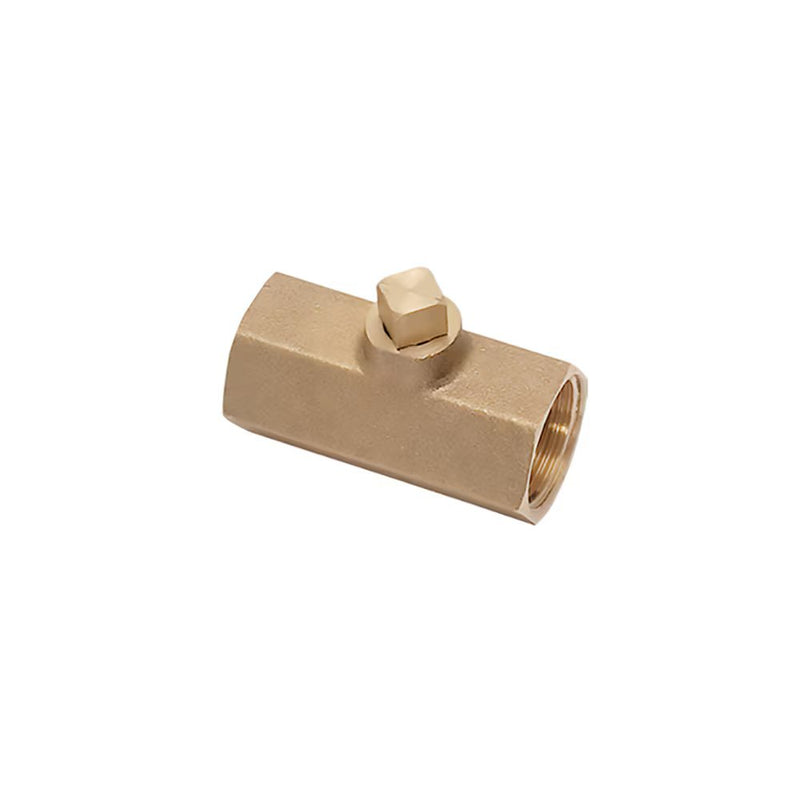

0497 07 17 by Parker | Legris Square Stem Ball Valve | 1/4" Female BSPP Thread | 22 mm Hex | Straight | Brass

0497 07 17 by Parker | Legris Square Stem Ball Valve | 1/4" Female BSPP Thread | 22 mm Hex | Straight | Brass | Pack of 10

Save $170.22 Save $170.22
$425.55
$425.55 - $425.55
$425.55
$255.33
$255.33 - $255.33
$255.33

by Parker Hannifin
Universal Light Series:0497 2/2 Ball Valve, Square Stem, Female BSPP Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0497 07 17 Parker | 10 |
Series: 0497 Series
Shape (Orientation): Straight
Material(s): Brass, Rilsan Graphited, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Corrosion Resistance, Repositionable Handle, Exchangeable Handle
Technical Characteristics:
  • Compatible Fluids: Industrial fluids
  • Working Pressure: Vacuum up to 12 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Compactness
  • Corrosion resistance due to chemical nickel plating
  • Automatic compensation of seal wear
  • Repositionable and exchangeable handles
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Shot-blasted brass or shot-blasted nickel-plated brass
  • Stem: Brass
  • Stem seal: NBR
  • Seat seal: Graphite-impregnated polyamide
  • Ball: Nickel-Plated Polished Brass
  • Wear-compensation seal: NBR
  • Lever: Polymer or Zamak
Part Number Diameter Nominal (DN) C E F H J L L1 Kg
0497 07 17 7 mm 3/8" 11 mm 22 mm 26 mm 7 mm 45 mm 20 mm .122 Kg
0497 13 27 13 mm 3/4" 14 mm 30 mm 30 mm 10 mm 62 mm 28 mm .230 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
