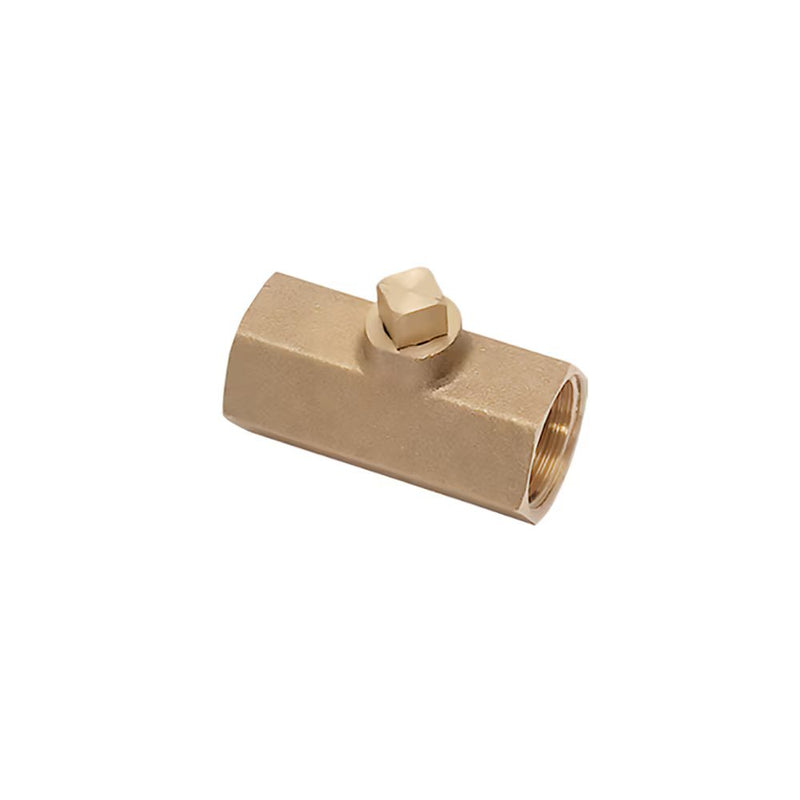

0497 13 27 by Parker | Legris Square Stem Ball Valve | 3/4" Female BSPP Thread | 30 mm Hex | Straight | Brass

Save $31.17

$77.92

$77.92 - $77.92

$77.92

$46.75

$46.75 - $46.75

$46.75

by Parker Hannifin
Universal Light Series:0497 2/2 Ball Valve, Square Stem, Female BSPP Thread

Specifications for Variant SKU: 0497 13 27 Parker
Series:	0497 Series
Shape (Orientation):	Straight
Material(s):	Brass, Rilsan Graphited, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Repositionable Handle, Exchangeable Handle

Technical Characteristics:	Compatible Fluids: Industrial fluids Working Pressure: Vacuum up to 12 bar Working Temperature: -20°C to +80°C
Advantages:	Compactness Corrosion resistance due to chemical nickel plating Automatic compensation of seal wear Repositionable and exchangeable handles
Regulations:	RoHS PED REACH
Component Materials:	Body: Shot-blasted brass or shot-blasted nickel-plated brass Stem: Brass Stem seal: NBR Seat seal: Graphite-impregnated polyamide Ball: Nickel-Plated Polished Brass Wear-compensation seal: NBR Lever: Polymer or Zamak


Part Number	Diameter Nominal (DN)	C	E	F	H	J	L	L1	Kg
0497 07 17	7 mm	3/8"	11 mm	22 mm	26 mm	7 mm	45 mm	20 mm	.122 Kg
0497 13 27	13 mm	3/4"	14 mm	30 mm	30 mm	10 mm	62 mm	28 mm	.230 Kg
