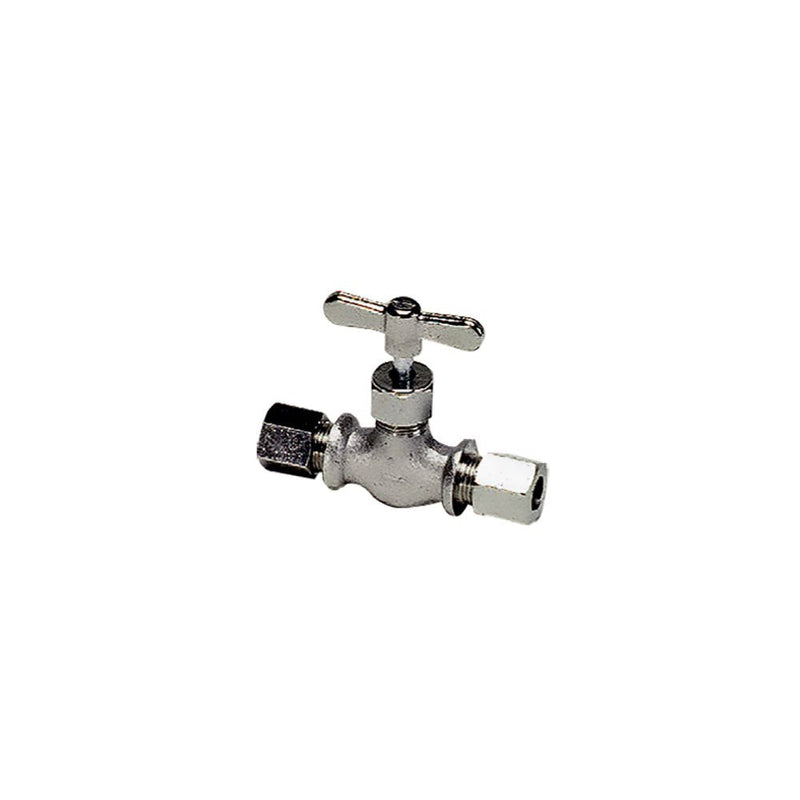

0510 04 06 by Parker | In-Line Needle Valve | 6 mm Tube Size x M10x1 Metric Thread | 13 mm Hex | Straight | Nickel-Plated Brass

0510 04 06 by Parker | In-Line Needle Valve | 6 mm Tube Size x M10x1 Metric Thread | 13 mm Hex | Straight | Nickel-Plated Brass | Pack of 10

Save $349.87 Save $349.87
$874.67
$874.67 - $874.67
$874.67
$524.80
$524.80 - $524.80
$524.80

by Parker Hannifin
Needle Valve Series:0510 In-Line Needle Valve with Compression Connections

Package Quantity: 10 Units

Specifications for Variant SKU: 0510 04 06 Parker | 10 |
Series: 0510 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass, Brass
Special Properties: Silicone Free, Water Hammer Resistance
Technical Characteristics:
  • Compatible Fluids: Compressed air, water, industrial fluids, etc.
  • Working Pressure: 0 to 120 bar
  • Working Temperature: -20°C to +100°C (except model 0510)
Advantages:
  • Manual flow adjustment
  • Numerous valve and safety accessory configurations
Regulations:
  • PED
  • RoHS
  • REACH
Component Materials:
  • Stem nut: Nickel-plated brass or 316L Stainless Steel (0591)
  • Top packing washer: Brass or 316L Stainless Steel (0591)
  • Body: Nickel-plated brass or 316L Stainless Steel (0591)
  • Lever: Zamak, Nickel-plated brass or 316L Stainless Steel (0591)
  • Locking nut: Nickel-plated brass or 316L Stainless Steel (0591)
  • Needle: Nickel-plated brass or 316L Stainless Steel (0591)
  • Bottom packing washer: Mineral Fiber
Part Number Diameter Nominal (DN) ØD C F H (min) H (max) L/2 Kg
0510 04 06 4 mm 6 mm M10x1 13 mm 42 mm 46 mm 29 mm .083 Kg
0510 05 08 8 mm 8 mm M12x1 14 mm 42 mm 46 mm 30 mm .083 Kg
0510 05 10 5 mm 10 mm M16x1.5 19 mm 42 mm 46 mm 31 mm .134 Kg
