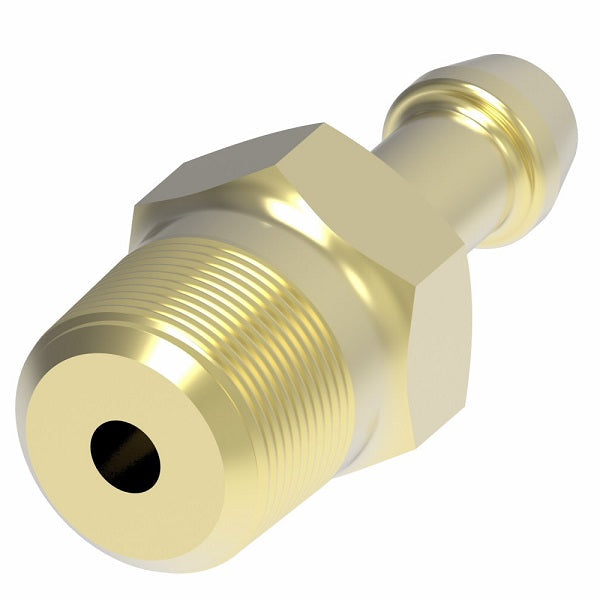

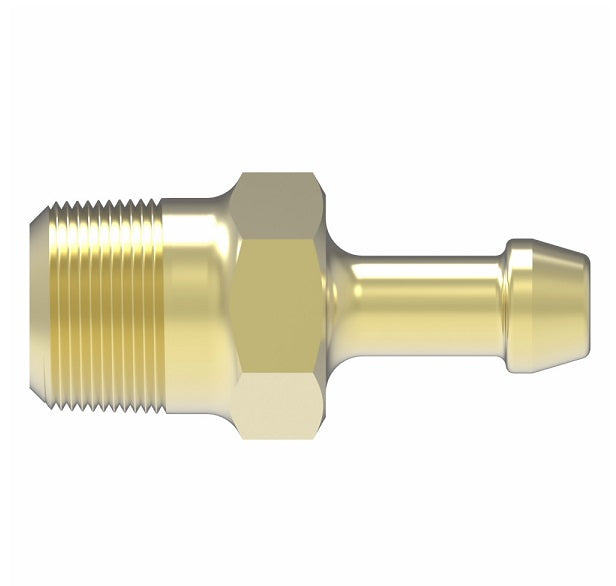

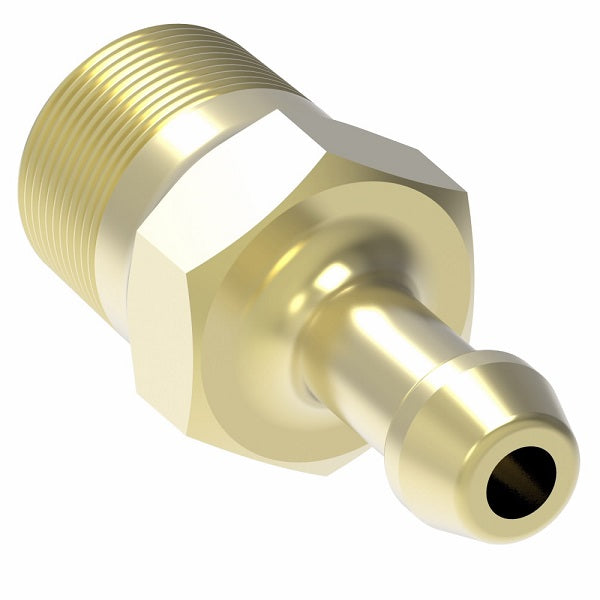

05704B-102 Weatherhead by Danfoss | Male Pipe Rigid Field Attachable Fitting | 057 'B' Series | -02 Male NPTF x -04 Reusable Hose End | Brass
05704B-102 Weatherhead by Danfoss | Male Pipe Rigid Field Attachable Fitting | 057 'B' Series | -02 Male NPTF x -04 Reusable Hose End | Brass
05704B-102 Weatherhead by Danfoss | Male Pipe Rigid Field Attachable Fitting | 057 'B' Series | -02 Male NPTF x -04 Reusable Hose End | Brass
05704B-102 Weatherhead by Danfoss | Male Pipe Rigid Field Attachable Fitting | 057 'B' Series | -02 Male NPTF x -04 Reusable Hose End | Brass

05704B-102 Weatherhead by Danfoss | Male Pipe Rigid Field Attachable Fitting | 057 'B' Series | -02 Male NPTF x -04 Reusable Hose End | Brass

$2.54 - $2.54
$2.54
$2.54 - $2.54
$2.54

Weatherhead by Danfoss
Field Attachable Fitting - 057 'B' Series - Male NPTF x Reusable Hose End - Straight

Ideal Fitting for low pressure air, fuel and oil applications. Generally used for automotive, light truck, and small engine fuel lines.
Specifications for Variant SKU: 05704B-102 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/8in Male NPTF, 1/4in Reusable Hose End
Material(s): Brass
Compatible with the following Series: H057 Series  |   H0105 Series  |   H0106 Series  |   H115 Series
Advantages:
  • Easy to assemble - just push the Fitting into the hose and clamp. Good selection of configurations at reasonable cost.
Note:
  • Pressure: Determined by maximum working pressure for hose size.
  • Warning: Hose can be cut or damaged if overtightened.
Material:
  • CA360 Brass.
Compatible Hose:
  • H057
  • H0105 - for air applications only.
  • H0106 - for air applications only.
  • H115 - for air applications only.
Assembly instructions:
  • 1. Slide clamp over hose.
  • 2. Insert barbed end of Fitting into hose.
  • 3. Locate band clamp in the middle of 057 'B' Series inserts and tighten.
  • 4. Position wire clamp behind bump on 057 'B' Series insert with H057 hose only.
Part Number Hose I.D. Pipe Size
05703B-102 3/16" 1/8"
05704B-102 1/4" 1/8"
05704B-104 1/4" 1/4"
05705B-102 5/16" 1/8"
05705B-104 5/16" 1/4"
05706B-102 3/8" 1/8"
05706B-104 3/8" 1/4"
05706B-106 3/8" 3/8"
05710B-106 5/8" 3/8"
05710B-108 5/8" 1/2"
05712B-108 3/4" 1/2"
