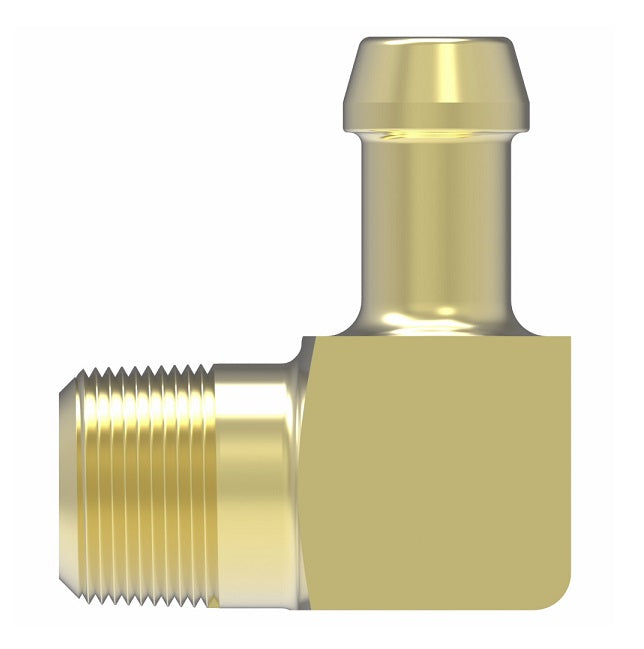

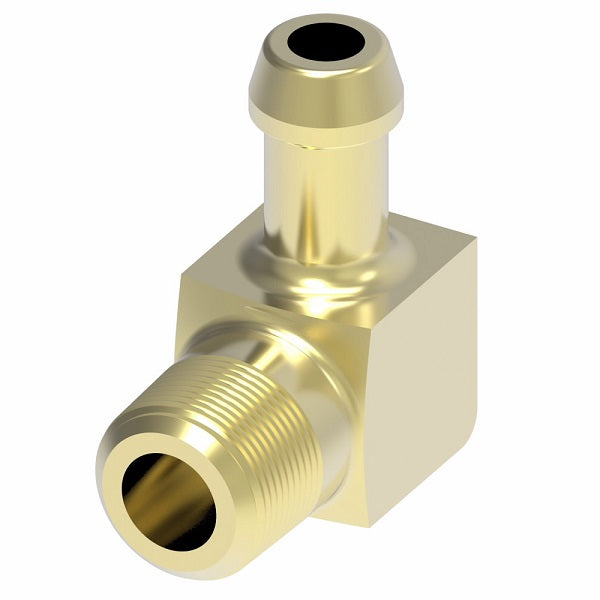

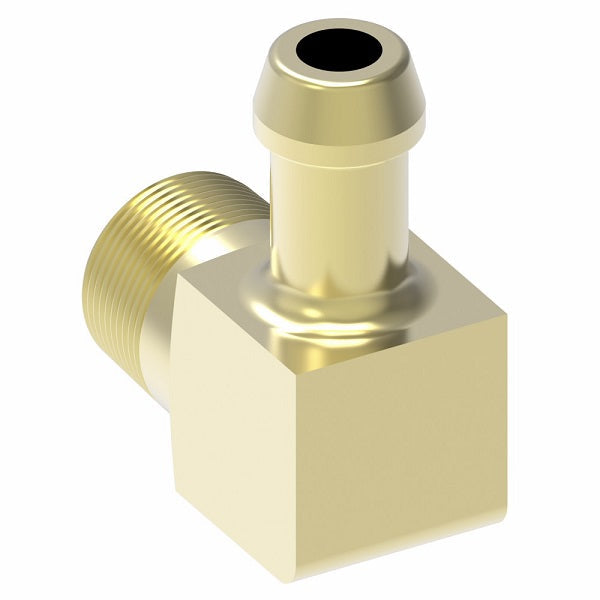

05706B-C02 Weatherhead by Danfoss | Male Pipe Rigid 90° Elbow Field Attachable Fitting | 057 'B' Series | -02 Male NPTF x -06 Reusable Hose End | Brass
05706B-C02 Weatherhead by Danfoss | Male Pipe Rigid 90° Elbow Field Attachable Fitting | 057 'B' Series | -02 Male NPTF x -06 Reusable Hose End | Brass
05706B-C02 Weatherhead by Danfoss | Male Pipe Rigid 90° Elbow Field Attachable Fitting | 057 'B' Series | -02 Male NPTF x -06 Reusable Hose End | Brass
05706B-C02 Weatherhead by Danfoss | Male Pipe Rigid 90° Elbow Field Attachable Fitting | 057 'B' Series | -02 Male NPTF x -06 Reusable Hose End | Brass

05706B-C02 Weatherhead by Danfoss | Male Pipe Rigid 90° Elbow Field Attachable Fitting | 057 'B' Series | -02 Male NPTF x -06 Reusable Hose End | Brass

$8.35 - $8.35
$8.35
$8.35 - $8.35
$8.35

Weatherhead by Danfoss
Field Attachable Fitting - 057 'B' Series - Male NPTF x Reusable Hose End - 90° Elbow

Ideal Fitting for low pressure air, fuel and oil applications. Generally used for automotive, light truck, and small engine fuel lines.
Specifications for Variant SKU: 05706B-C02 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/8in Male NPTF, 3/8in Reusable Hose End
Material(s): Brass
Compatible with the following Series: H057 Series  |   H0105 Series  |   H0106 Series  |   H115 Series
Advantages:
  • Easy to assemble - just push the Fitting into the hose and clamp. Good selection of configurations at reasonable cost.
Note:
  • Pressure: Determined by maximum working pressure for hose size.
  • Warning: Hose can be cut or damaged if overtightened.
Material:
  • CA360 Brass.
Compatible Hose:
  • H057
  • H0105 - for air applications only.
  • H0106 - for air applications only.
  • H115 - for air applications only.
Assembly instructions:
  • 1. Slide clamp over hose.
  • 2. Insert barbed end of Fitting into hose.
  • 3. Locate band clamp in the middle of 057 'B' Series inserts and tighten.
  • 4. Position wire clamp behind bump on 057 'B' Series insert with H057 hose only.
Brass
Part Number 		Hose I.D. Pipe Size
05704B-C02 1/4" 1/8"
05705B-C02 5/16" 1/8"
05705B-C04 5/16" 1/4"
05706B-C02 3/8" 1/8"
05706B-C04 3/8" 1/4"
05706B-C06 3/8" 3/8"
05710B-C06 5/8" 3/8"
