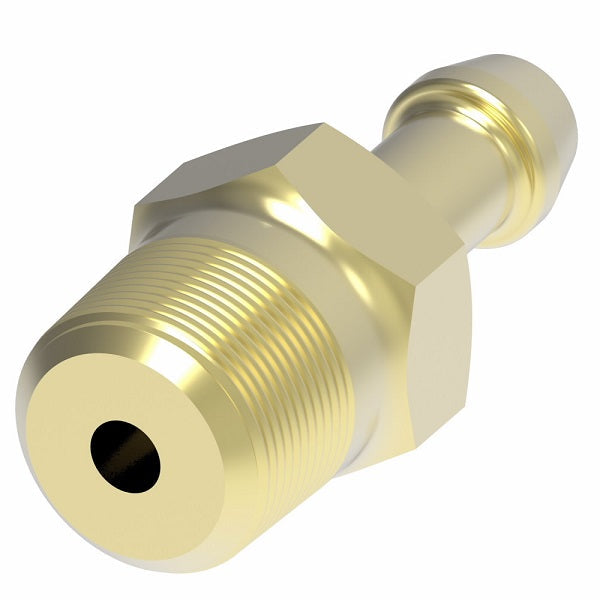

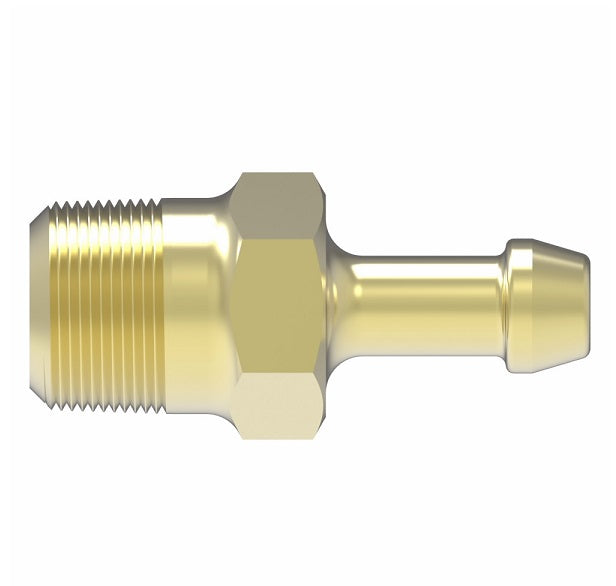

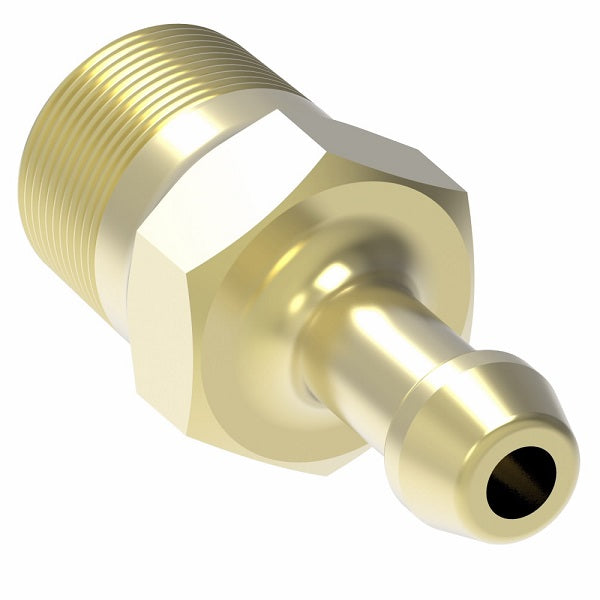

05710B-108 Weatherhead by Danfoss | Male Pipe Rigid Field Attachable Fitting | 057 'B' Series | -08 Male NPTF x -10 Reusable Hose End | Brass

05710B-108 Weatherhead by Danfoss | Male Pipe Rigid Field Attachable Fitting | 057 'B' Series | -08 Male NPTF x -10 Reusable Hose End | Brass

$14.51 - $14.51
$14.51
$14.51 - $14.51
$14.51

Weatherhead by Danfoss
Field Attachable Fitting - 057 'B' Series - Male NPTF x Reusable Hose End - Straight

Ideal Fitting for low pressure air, fuel and oil applications. Generally used for automotive, light truck, and small engine fuel lines.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 05710B-108 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPTF, 5/8in Reusable Hose End
Material(s): Brass
Compatible with the following Series: H057 Series  |   H0105 Series  |   H0106 Series  |   H115 Series
Advantages:
  • Easy to assemble - just push the Fitting into the hose and clamp. Good selection of configurations at reasonable cost.
Note:
  • Pressure: Determined by maximum working pressure for hose size.
  • Warning: Hose can be cut or damaged if overtightened.
Material:
  • CA360 Brass.
Compatible Hose:
  • H057
  • H0105 - for air applications only.
  • H0106 - for air applications only.
  • H115 - for air applications only.
Assembly instructions:
  • 1. Slide clamp over hose.
  • 2. Insert barbed end of Fitting into hose.
  • 3. Locate band clamp in the middle of 057 'B' Series inserts and tighten.
  • 4. Position wire clamp behind bump on 057 'B' Series insert with H057 hose only.
Part Number Hose I.D. Pipe Size
05703B-102 3/16" 1/8"
05704B-102 1/4" 1/8"
05704B-104 1/4" 1/4"
05705B-102 5/16" 1/8"
05705B-104 5/16" 1/4"
05706B-102 3/8" 1/8"
05706B-104 3/8" 1/4"
05706B-106 3/8" 3/8"
05710B-106 5/8" 3/8"
05710B-108 5/8" 1/2"
05712B-108 3/4" 1/2"
