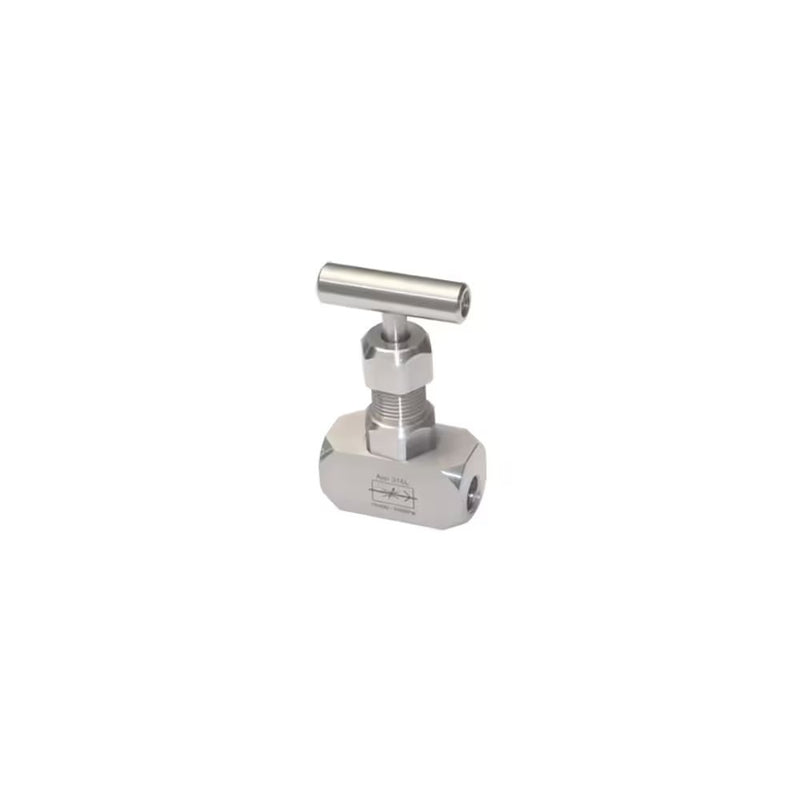

0591 06 21 by Parker | Needle Valve | 1/2" Female BSPP Thread | 22 mm Hex | 104 mm Length | Straight | 316L Stainless Steel

0591 06 21 by Parker | Needle Valve | 1/2" Female BSPP Thread | 22 mm Hex | 104 mm Length | Straight | 316L Stainless Steel

Save $29.71 Save $29.71
$408.78
$408.78 - $408.78
$408.78
$379.07
$379.07 - $379.07
$379.07

by Parker Hannifin
Needle Valve Series:0591 Needle Valve, Female BSPP Thread
Specifications for Variant SKU: 0591 06 21 Parker
Series: 0591 Series
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): PTFE
Special Properties: Silicone Free, Water Hammer Resistance
Technical Characteristics:
  • Compatible Fluids: Many fluids
  • Working Pressure: 0 to 400 bar
  • Working Temperature: -20°C to +180°C
Advantages:
  • Manual flow adjustment
  • Numerous valve and safety accessory configurations
Regulations:
  • PED
  • RoHS
  • REACH
Component Materials:
  • Stem nut: Nickel-plated brass or 316L Stainless Steel (0591)
  • Top packing washer: Brass or 316L Stainless Steel (0591)
  • Body: Nickel-plated brass or 316L Stainless Steel (0591)
  • Lever: Zamak, Nickel-plated brass or 316L Stainless Steel (0591)
  • Locking nut: Nickel-plated brass or 316L Stainless Steel (0591)
  • Needle: Nickel-plated brass or 316L Stainless Steel (0591)
  • Bottom packing washer: Mineral Fiber
Part Number Diameter Nominal (DN) C F H (min) H (max) L L1 Kg
0591 05 17 5 mm 3/8" 22 mm 90 mm 104 mm 90 mm 30 mm 56 mm 48 mm .430 Kg
0591 06 21 6 mm 1/2" 22 mm 90 mm 104 mm 90 mm 30 mm 62 mm 48 mm .478 Kg
