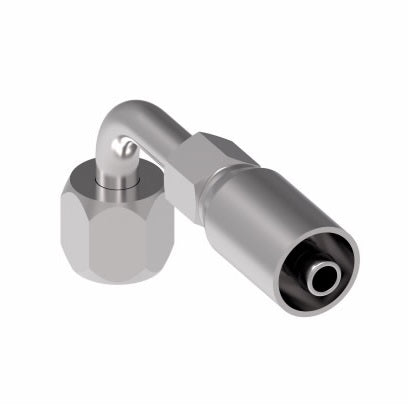

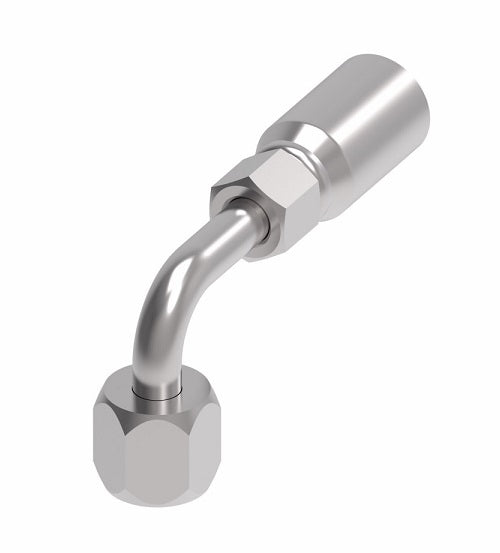

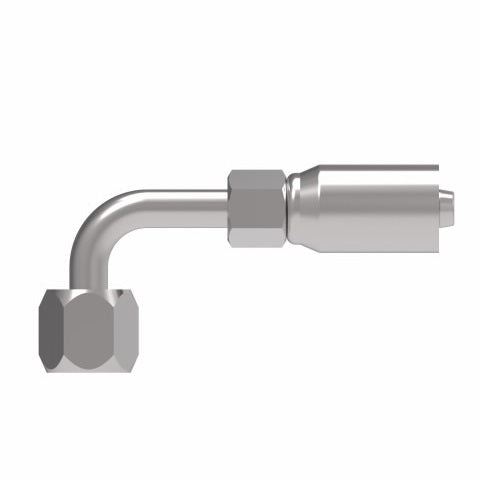

05E-665 Weatherhead by Danfoss | Everflex E Series | Female 37° JIC Swivel Tube 90° Elbow Crimp Fitting | -05 Female 37° JIC Swivel x -05 Hose Barb | Steel
05E-665 Weatherhead by Danfoss | Everflex E Series | Female 37° JIC Swivel Tube 90° Elbow Crimp Fitting | -05 Female 37° JIC Swivel x -05 Hose Barb | Steel
05E-665 Weatherhead by Danfoss | Everflex E Series | Female 37° JIC Swivel Tube 90° Elbow Crimp Fitting | -05 Female 37° JIC Swivel x -05 Hose Barb | Steel
05E-665 Weatherhead by Danfoss | Everflex E Series | Female 37° JIC Swivel Tube 90° Elbow Crimp Fitting | -05 Female 37° JIC Swivel x -05 Hose Barb | Steel

05E-665 Weatherhead by Danfoss | Everflex E Series | Female 37° JIC Swivel Tube 90° Elbow Crimp Fitting | -05 Female 37° JIC Swivel x -05 Hose Barb | Steel

$34.17 - $34.17
$34.17
$34.17 - $34.17
$34.17

Weatherhead by Danfoss
Everflex 'E' Series Crimp Fitting - Female 37° JIC Swivel Tube - 90° Elbow
Specifications for Variant SKU: 05E-665 Danfoss
Brand: Weatherhead
Series: Everflex E Series
Shape (Orientation): 90 Degree
Ends Configuration: 5/16in Female JIC, 5/16in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H009 Series  |   H243 Series  |   H275 Series  |   H277 Series  |   H285 Series
Applications:
  • General purpose low and medium pressure hydraulics.
  • Use H277 where shock hazards exist.
Pressure:
  • Determined by maximum operating pressure for hose size and hose end configuration whichever is lesser.
Material:
  • Low carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H009, H243, H275, H277, H285
Warning:
  • For PTFE hose applications, 'E' series fittings must be used with H243 and H277 0.030" thin wall hose only
Steel
Part Number		 Hose I.D. Tube Size Thread Size A B Hose Cut-Off
Factor		 Hole Dia. Hex
E		 Hex
F
04E-664* 1/4" 1/4" 7/16-20 2.27" 0.68" 1.44" 0.15" 7/16" 9/16"
04E-665* 1/4" 5/16" 1/2-20 2.47" 0.77" 1.63" 0.16" 7/16" 5/8"
05E-665* 5/16" 5/16" 1/2-20 2.58" 0.77" 1.63" 0.21" 9/16" 5/8"
05E-666 5/16" 3/8" 9/16-18 2.57" 0.85" 1.62" 0.22" 9/16" 11/16"
06E-666 3/8" 3/8" 9/16-18 2.63" 0.85" 1.68" 0.24" 5/8" 11/16"
06E-668* 3/8" 1/2" 3/4-16 2.76" 1.09" 1.81" 0.27" 5/8" 7/8"
08E-668* 1/2" 1/2" 3/4-16 2.82" 1.09" 1.75" 0.33" 3/4" 7/8"
08E-670* 1/2" 5/8" 7/8-14 3.34" 1.23" 2.31" 0.39" 3/4" 1"
12E-672 3/4" 3/4" 1-1/16-12 3.70" 1.82" 2.50" 0.59" 1" 1-1/4"
16E-676 1" 1" 1-5/16-12 4.39" 2.14" 3.00" 0.83" 1-1/4" 1-1/2"

* Swivel nuts are universal - both SAE 37° and 45° connections.

Note: Drawings may differ from actual parts.
