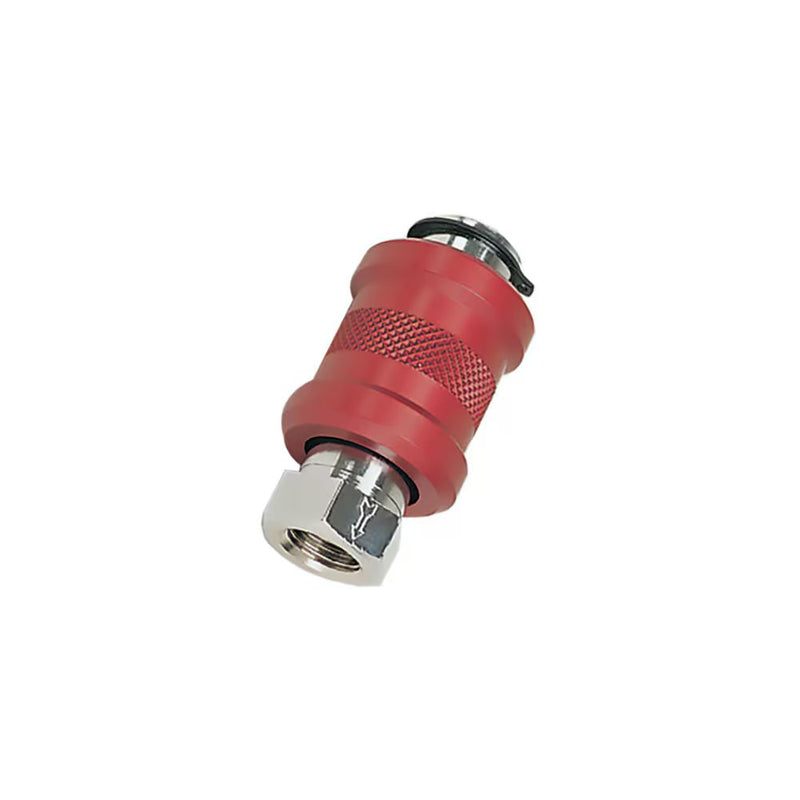

0669 07 13 by Parker | Legris 3/2 Sleeve Valve | 7 mm Tube Size x 1/4" Female BSPP Thread | 19 mm Hex | 58 mm Length | Straight | Nickel-Plated Brass

0669 07 13 by Parker | Legris 3/2 Sleeve Valve | 7mm Tube Size x 1/4" Female BSPP Thread | 19mm Hex | 58mm Length | Straight | Nickel-Plated Brass

Save $15.01 Save $15.01
$37.53
$37.53 - $37.53
$37.53
$22.52
$22.52 - $22.52
$22.52

by Parker Hannifin
Manually-Operated Valves:0669 3/2 Sleeve Valve, Female BSPP and Metric Thread
Specifications for Variant SKU: 0669 07 13 Parker
Series: 0669 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 0 to 10 bar
    Model 0669: 0 to 16 bar
  • Working Temperature: -10°C to +80°C
    Model 0669: -5°C to +70°C
Advantages:
      Manual switch-operated valves:
  • 2 models:
      • - 3/2: opening, closing, venting
      - 2/2: opening, closing
  • Can be positioned through 360°
  • Manual switch-operated valves:
  • Uni-directional use ensures the downstream circuit is vented
  • Identification of the venting system by the color (red)
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Bolt: Manual switch-operated valve: nickel-plated brass with seal
    Sleeve valve: Nickel-plated brass
  • Body: Manual switch-operated valve: Technical polymer
    Sleeve valve: Nickel-plated brass
  • Seal: NBR
  • Lever: Nickel-plated brass
  • Locking nut: Nickel-plated brass
Part Number Diameter Nominal (DN) C F G L Kg
0669 02 19 2.5 mm M5x0.8 10 mm 14 mm 30.5 mm .012 Kg
0669 04 10 4 mm 1/8" 14 mm 25 mm 48 mm .050 Kg
0669 07 13 7 mm 1/4" 19 mm 30 mm 58 mm .096 Kg
0669 10 17 10 mm 3/8" 22 mm 35 mm 68 mm .154 Kg
0669 14 21 14 mm 1/2" 27 mm 40 mm 75 mm .210 Kg
0669 19 27 19 mm 3/4" 32 mm 50 mm 83 mm .330 Kg
