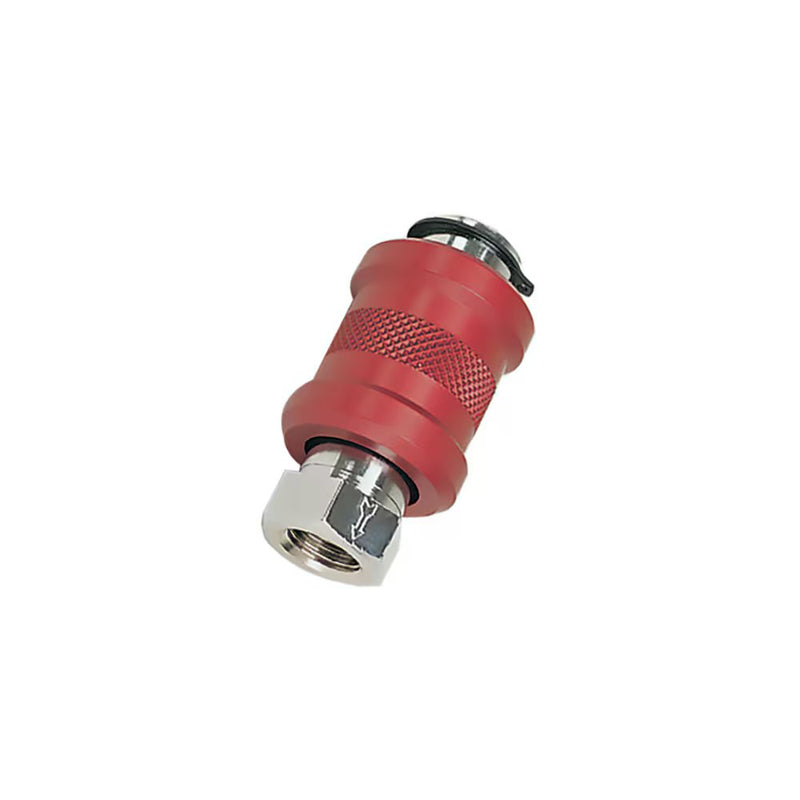

0669 10 17 by Parker | Legris 3/2 Sleeve Valve | 10mm Tube Size x 3/8" Female BSPP Thread | 22mm Hex | 68mm Length | Straight | Nickel-Plated Brass

Save $10.53

$41.16

$41.16 - $41.16

$41.16

$30.63

$30.63 - $30.63

$30.63

by Parker Hannifin
Manually-Operated Valves:0669 3/2 Sleeve Valve, Female BSPP and Metric Thread

Specifications for Variant SKU: 0669 10 17 Parker
Series:	0669 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 0 to 10 bar Model 0669: 0 to 16 bar Working Temperature: -10°C to +80°C Model 0669: -5°C to +70°C
Advantages:	Manual switch-operated valves: 2 models: - 3/2: opening, closing, venting - 2/2: opening, closing Can be positioned through 360° Manual switch-operated valves: Uni-directional use ensures the downstream circuit is vented Identification of the venting system by the color (red)
Regulations:	RoHS PED REACH
Component Materials:	Bolt: Manual switch-operated valve: nickel-plated brass with seal Sleeve valve: Nickel-plated brass Body: Manual switch-operated valve: Technical polymer Sleeve valve: Nickel-plated brass Seal: NBR Lever: Nickel-plated brass Locking nut: Nickel-plated brass


Part Number	Diameter Nominal (DN)	C	F	G	L	Kg
0669 02 19	2.5 mm	M5x0.8	10 mm	14 mm	30.5 mm	.012 Kg
0669 04 10	4 mm	1/8"	14 mm	25 mm	48 mm	.050 Kg
0669 07 13	7 mm	1/4"	19 mm	30 mm	58 mm	.096 Kg
0669 10 17	10 mm	3/8"	22 mm	35 mm	68 mm	.154 Kg
0669 14 21	14 mm	1/2"	27 mm	40 mm	75 mm	.210 Kg
0669 19 27	19 mm	3/4"	32 mm	50 mm	83 mm	.330 Kg
