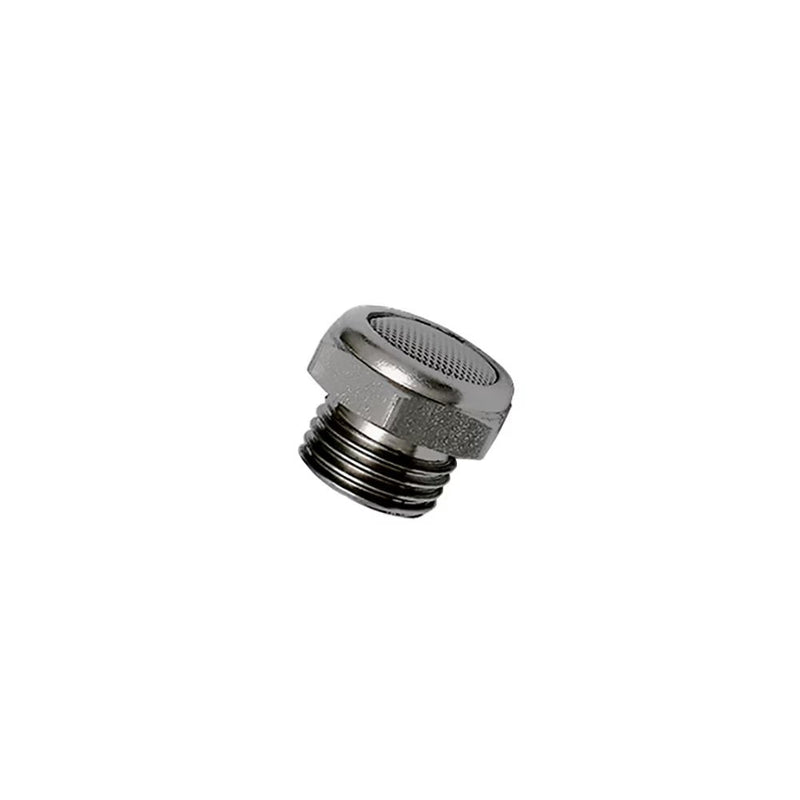

0682 00 10 by Parker | Legris Threaded Silencer | G1/8" Male BSPP Thread | 15 mm length | Stainless Steel | Pack of 5

Save $53.07

$132.67

$132.67 - $132.67

$132.67

$79.60

$79.60 - $79.60

$79.60

by Parker Hannifin
Silencers:0682 Compact Silencer, Male BSPP Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 0682 00 10 Parker \| 5 \|
Series:	0682 Series
Shape (Orientation):	No Orientation
Material(s):	Stainless Steel
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Polyethylene: 0 to 10 bar Sintered bronze: 0 to 12 bar 316L Stainless Steel: 0 to 12 bar Working Temperature: Polyethylene: -10°C to +80°C Sintered bronze: -20°C to +150°C 316L Stainless Steel: -20°C to +180°C
Advantages:	3 materials available - Polyethylene: optimum exhaust flow rate and noise attention - Sintered bronze: robust and economic - 316L stainless Steel: increased chemical and mechanical resistance incorporated flow control regulator on 2 versions
Regulations:	RoHS PED REACH 2003/10/CE OSHA
Component Materials:	Body: Brass (0670-0673-0675-0671-0677-0672) Polymer (0674-0676) Stainless Steel (0682-0683) Silencer: Sintered Bronze (0670-0673-0675-0671-0677-0672) Polymer (0674-0676) Stainless Steel (0682-0683)


Part Number	BSPP (C)	E	F	G	H	Wt (Kg)
0682 00 10	G1/8"	8 mm	7 mm	14 mm	15 mm	.009 kg
0682 00 13	G1/4"	8 mm	7 mm	17 mm	15 mm	.013 kg
0682 00 17	G3/8"	10 mm	8 mm	22 mm	18 mm	.020 kg
0682 00 21	G1/2"	12 mm	10 mm	27 mm	22 mm	.038 kg
0682 00 27	G3/4"	15 mm	12 mm	32 mm	27 mm	.066 kg
0682 00 34	G1"	18 mm	14 mm	38 mm	32 mm	.118 kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
