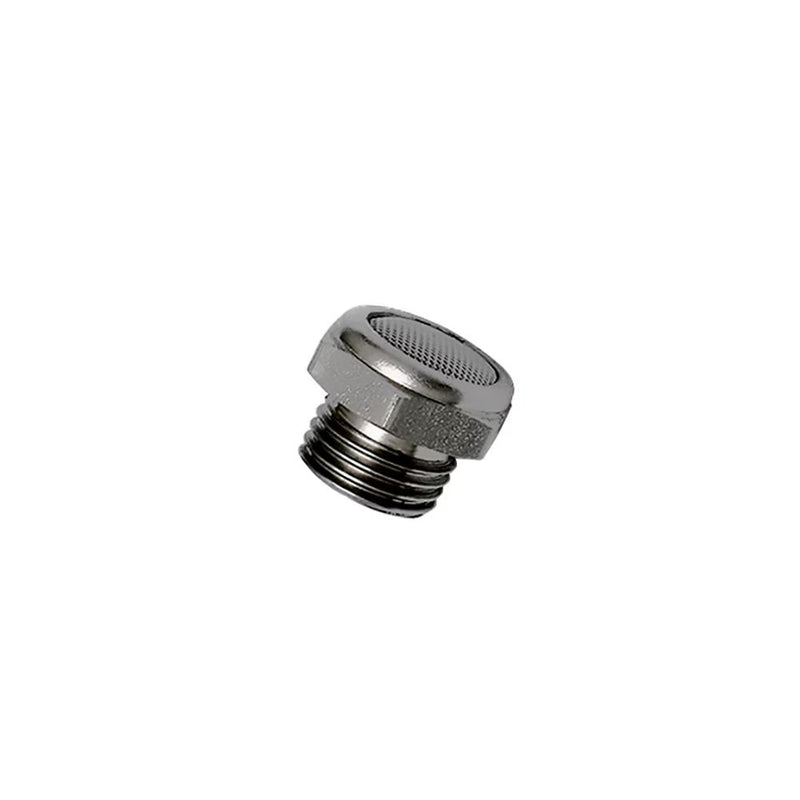

0682 00 21 by Parker | Legris Threaded Silencer | G1/2" Male BSPP Thread | 22 mm length | Stainless Steel

0682 00 21 by Parker | Legris Threaded Silencer | G1/2" Male BSPP Thread | 22 mm length | Stainless Steel

Save $28.53 Save $28.53
$71.32
$71.32 - $71.32
$71.32
$42.79
$42.79 - $42.79
$42.79

by Parker Hannifin
Silencers:0682 Compact Silencer, Male BSPP Thread
Specifications for Variant SKU: 0682 00 21 Parker
Series: 0682 Series
Shape (Orientation): No Orientation
Material(s): Stainless Steel
Special Properties: Silicone Free
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Polyethylene: 0 to 10 bar
    Sintered bronze: 0 to 12 bar
    316L Stainless Steel:     0 to 12 bar
  • Working Temperature: Polyethylene: -10°C to +80°C
    Sintered bronze: -20°C to +150°C
    316L Stainless Steel:     -20°C to +180°C
Advantages:
      3 materials available
      - Polyethylene: optimum exhaust flow rate and noise attention
      - Sintered bronze: robust and economic
      - 316L stainless Steel: increased chemical and mechanical resistance
  • incorporated flow control regulator on 2 versions
Regulations:
  • RoHS
  • PED
  • REACH
  • 2003/10/CE
  • OSHA
Component Materials:
  • Body: Brass (0670-0673-0675-0671-0677-0672)
    Polymer (0674-0676)
    Stainless Steel (0682-0683)
  • Silencer: Sintered Bronze (0670-0673-0675-0671-0677-0672)
    Polymer (0674-0676)
    Stainless Steel (0682-0683)
Part Number BSPP (C) E F G H Wt (Kg)
0682 00 10 G1/8" 8 mm 7 mm 14 mm 15 mm .009 kg
0682 00 13 G1/4" 8 mm 7 mm 17 mm 15 mm .013 kg
0682 00 17 G3/8" 10 mm 8 mm 22 mm 18 mm .020 kg
0682 00 21 G1/2" 12 mm 10 mm 27 mm 22 mm .038 kg
0682 00 27 G3/4" 15 mm 12 mm 32 mm 27 mm .066 kg
0682 00 34 G1" 18 mm 14 mm 38 mm 32 mm .118 kg
