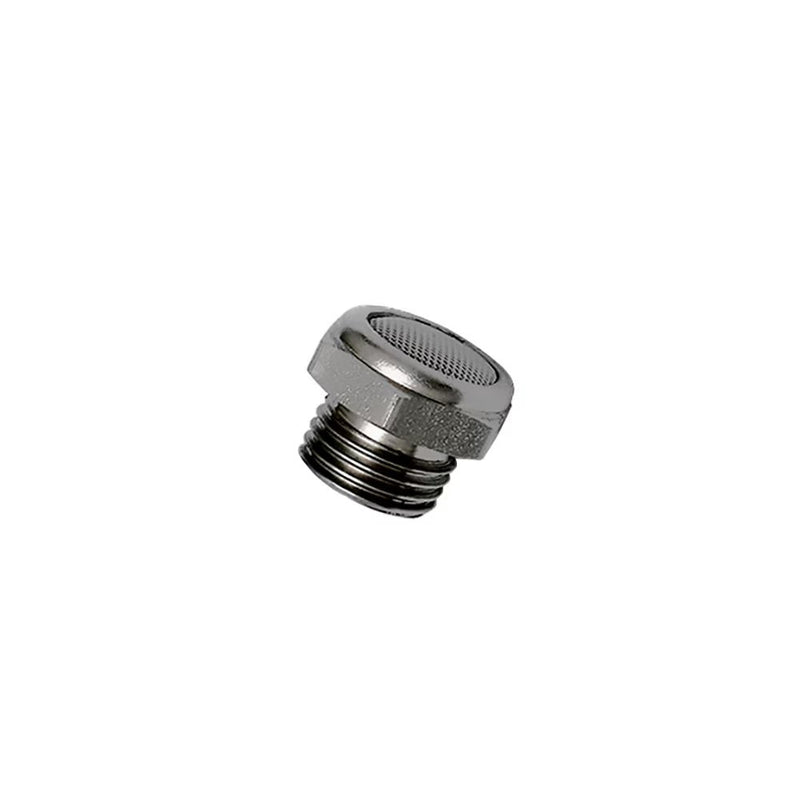

0682 00 34 by Parker | Legris Threaded Silencer | G1" Male BSPP Thread | 32 mm length | Stainless Steel | Pack of 2

Save $148.55

$371.38

$371.38 - $371.38

$371.38

$222.83

$222.83 - $222.83

$222.83

by Parker Hannifin
Silencers:0682 Compact Silencer, Male BSPP Thread

Package Quantity: 2 Units

Specifications for Variant SKU: 0682 00 34 Parker \| 2 \|
Series:	0682 Series
Shape (Orientation):	No Orientation
Material(s):	Stainless Steel
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Polyethylene: 0 to 10 bar Sintered bronze: 0 to 12 bar 316L Stainless Steel: 0 to 12 bar Working Temperature: Polyethylene: -10°C to +80°C Sintered bronze: -20°C to +150°C 316L Stainless Steel: -20°C to +180°C
Advantages:	3 materials available - Polyethylene: optimum exhaust flow rate and noise attention - Sintered bronze: robust and economic - 316L stainless Steel: increased chemical and mechanical resistance incorporated flow control regulator on 2 versions
Regulations:	RoHS PED REACH 2003/10/CE OSHA
Component Materials:	Body: Brass (0670-0673-0675-0671-0677-0672) Polymer (0674-0676) Stainless Steel (0682-0683) Silencer: Sintered Bronze (0670-0673-0675-0671-0677-0672) Polymer (0674-0676) Stainless Steel (0682-0683)


Part Number	BSPP (C)	E	F	G	H	Wt (Kg)
0682 00 10	G1/8"	8 mm	7 mm	14 mm	15 mm	.009 kg
0682 00 13	G1/4"	8 mm	7 mm	17 mm	15 mm	.013 kg
0682 00 17	G3/8"	10 mm	8 mm	22 mm	18 mm	.020 kg
0682 00 21	G1/2"	12 mm	10 mm	27 mm	22 mm	.038 kg
0682 00 27	G3/4"	15 mm	12 mm	32 mm	27 mm	.066 kg
0682 00 34	G1"	18 mm	14 mm	38 mm	32 mm	.118 kg
