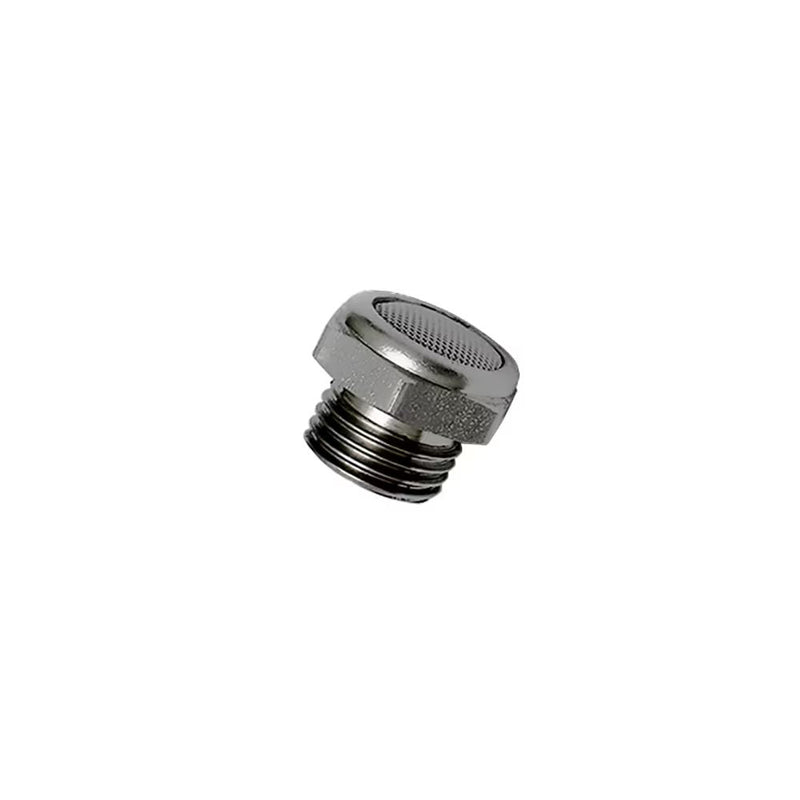

0683 00 18 by Parker | Legris Threaded Silencer | 3/8" Male NPT Thread | 22 mm Length | Stainless Steel

0683 00 18 by Parker | Legris Threaded Silencer | 3/8" Male NPT Thread | 22 mm Length | Stainless Steel | Pack of 5

Save $79.02 Save $79.02
$197.55
$197.55 - $197.55
$197.55
$118.53
$118.53 - $118.53
$118.53

by Parker Hannifin
Silencers:0683 Compact Silencer, Male NPT Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 0683 00 18 Parker | 5 |
Series: 0683 Series
Shape (Orientation): No Orientation
Material(s): Stainless Steel
Special Properties: Silicone Free
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Polyethylene: 0 to 10 bar
    Sintered bronze: 0 to 12 bar
    316L Stainless Steel:     0 to 12 bar
  • Working Temperature: Polyethylene: -10°C to +80°C
    Sintered bronze: -20°C to +150°C
    316L Stainless Steel:     -20°C to +180°C
Advantages:
      3 materials available
      - Polyethylene: optimum exhaust flow rate and noise attention
      - Sintered bronze: robust and economic
      - 316L stainless Steel: increased chemical and mechanical resistance
  • incorporated flow control regulator on 2 versions
Regulations:
  • RoHS
  • PED
  • REACH
  • 2003/10/CE
  • OSHA
Component Materials:
  • Body: Brass (0670-0673-0675-0671-0677-0672)
    Polymer (0674-0676)
    Stainless Steel (0682-0683)
  • Silencer: Sintered Bronze (0670-0673-0675-0671-0677-0672)
    Polymer (0674-0676)
    Stainless Steel (0682-0683)
Part Number NPT (C) E F G H Wt (Kg)
0683 00 11 1/8" .28" .28" 14 mm .55" .35 kg
0683 00 14 1/4" .43" .28" 17 mm .71" .53 kg
0683 00 18 3/8" .43" .31" 22 mm .75" .81 kg
0683 00 22 1/2" .59" .39" 27 mm .98" 1.55 kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
