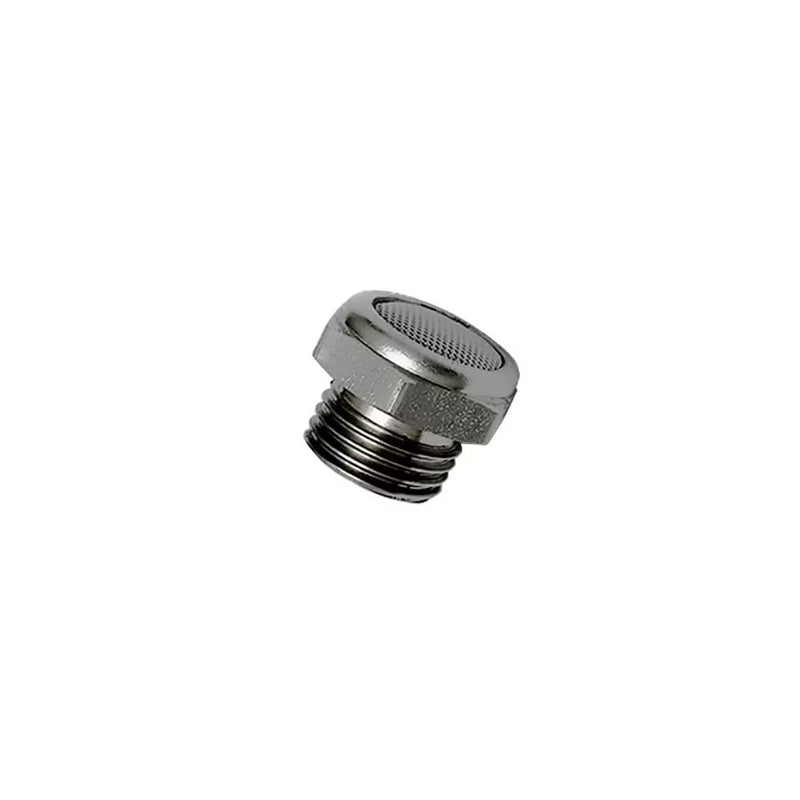

0683 00 22 by Parker | Legris Threaded Silencer | 1/2" Male NPT Thread | 27 mm Length | Stainless Steel

0683 00 22 by Parker | Legris Threaded Silencer | 1/2" Male NPT Thread | 27 mm Length | Stainless Steel | Pack of 5

Save $142.62 Save $142.62
$356.55
$356.55 - $356.55
$356.55
$213.93
$213.93 - $213.93
$213.93

by Parker Hannifin
Silencers:0683 Compact Silencer, Male NPT Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 0683 00 22 Parker | 5 |
Series: 0683 Series
Shape (Orientation): No Orientation
Material(s): Stainless Steel
Special Properties: Silicone Free
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Polyethylene: 0 to 10 bar
    Sintered bronze: 0 to 12 bar
    316L Stainless Steel:     0 to 12 bar
  • Working Temperature: Polyethylene: -10°C to +80°C
    Sintered bronze: -20°C to +150°C
    316L Stainless Steel:     -20°C to +180°C
Advantages:
      3 materials available
      - Polyethylene: optimum exhaust flow rate and noise attention
      - Sintered bronze: robust and economic
      - 316L stainless Steel: increased chemical and mechanical resistance
  • incorporated flow control regulator on 2 versions
Regulations:
  • RoHS
  • PED
  • REACH
  • 2003/10/CE
  • OSHA
Component Materials:
  • Body: Brass (0670-0673-0675-0671-0677-0672)
    Polymer (0674-0676)
    Stainless Steel (0682-0683)
  • Silencer: Sintered Bronze (0670-0673-0675-0671-0677-0672)
    Polymer (0674-0676)
    Stainless Steel (0682-0683)
Part Number NPT (C) E F G H Wt (Kg)
0683 00 11 1/8" .28" .28" 14 mm .55" .35 kg
0683 00 14 1/4" .43" .28" 17 mm .71" .53 kg
0683 00 18 3/8" .43" .31" 22 mm .75" .81 kg
0683 00 22 1/2" .59" .39" 27 mm .98" 1.55 kg
