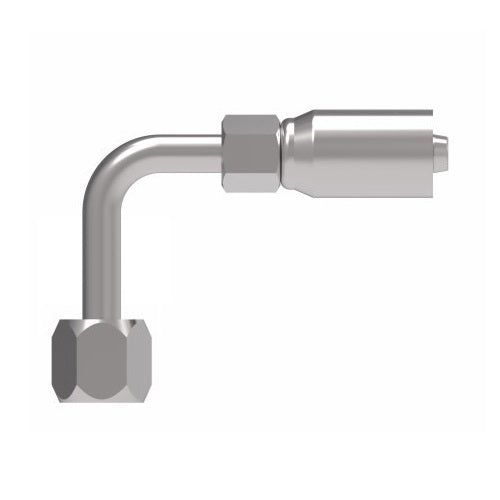

06E-648 Weatherhead by Danfoss | Everflex E Series | Female 37° JIC Swivel (Long Drop) Tube 90° Elbow Crimp Fitting | -08 Female 37° JIC Swivel x -06 Hose Barb | Steel

Name: 06E-648 Weatherhead by Danfoss | Everflex E Series | Female 37° JIC Swivel (Long Drop) Tube 90° Elbow Crimp Fitting | -08 Female 37° JIC Swivel x -06 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 06E-648 Danfoss
Price: 21.48 USD
Availability: InStock

$21.48 - $21.48

$21.48

$21.48 - $21.48

$21.48

Weatherhead by Danfoss
Everflex 'E' Series Crimp Fitting - Female 37° JIC Swivel (Long Drop) Tube - 90° Elbow

Specifications for Variant SKU: 06E-648 Danfoss
Brand:	Weatherhead
Series:	Everflex E Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Female JIC, 3/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel, Long Drop
Compatible with the following Series:	H009 Series \| H243 Series \| H275 Series \| H277 Series \| H285 Series

Applications:
General purpose low and medium pressure hydraulics. Use H277 where shock hazards exist.
Pressure:
Determined by maximum operating pressure for hose size and hose end configuration whichever is lesser.
Material:
Low carbon steel Plating: Zinc; clear trivalent chromate
Compatible Hose:
H009, H243, H275, H277, H285
Warning:
For PTFE hose applications, 'E' series fittings must be used with H243 and H277 0.030" thin wall hose only


Steel Part Number	Hose I.D.	Tube Size	Thread Size	A	B	Hose Cut-Off Factor	Hole Dia.	Hex E	Hex F
04E-644*	1/4"	1/4"	7/16-20	2.27"	1.80"	1.42"	0.15"	7/16"	9/16"
06E-648*	3/8"	1/2"	3/4-16	2.83"	2.43"	1.88"	0.27"	5/8"	7/8"
08E-648*	1/2"	1/2"	3/4-16	2.82"	2.43"	1.75"	0.33"	3/4"	7/8"

* Swivel nuts are universal - both SAE 37° and 45° connections.

Note: Drawings may differ from actual parts.
