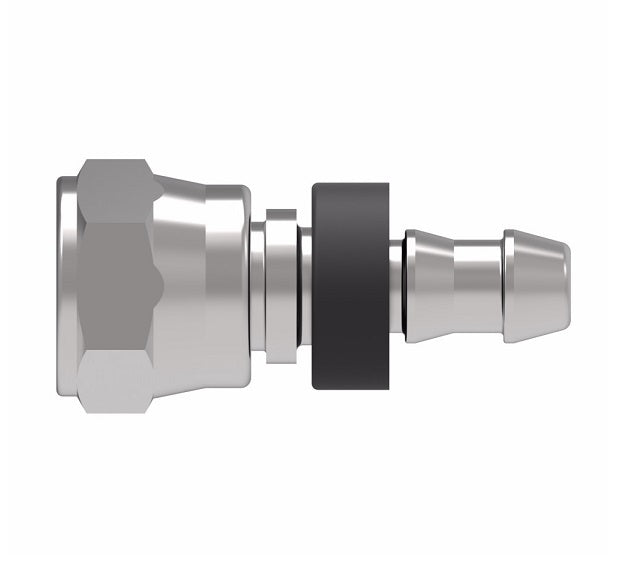

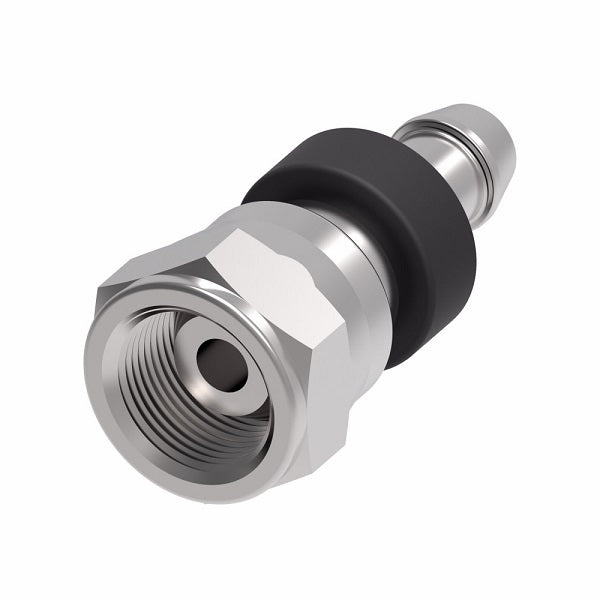

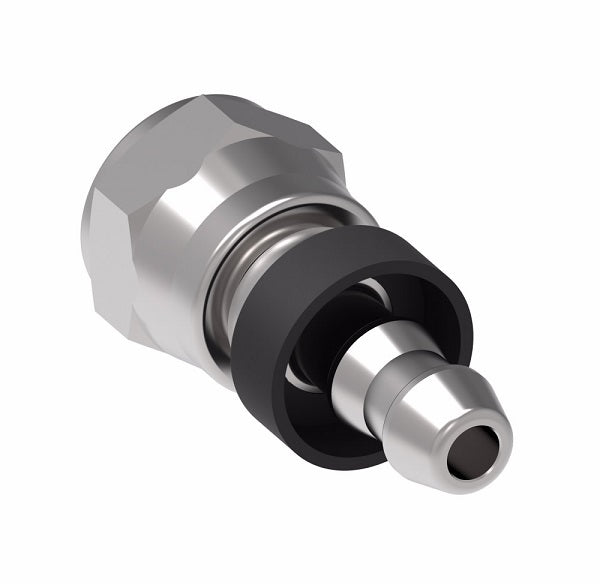

07.390-8-8 Aeroquip by Danfoss | Female Metric BSPP Swivel Socketless Reusable Hose Fitting | -08 Female Metric BSPP Swivel x -08 Push-On Hose Barb | Steel

07.390-8-8 Aeroquip by Danfoss | Female Metric BSPP Swivel Socketless Reusable Hose Fitting | -08 Female Metric BSPP Swivel x -08 Push-On Hose Barb | Steel

Name: 07.390-8-8 Aeroquip by Danfoss | Female Metric BSPP Swivel Socketless Reusable Hose Fitting | -08 Female Metric BSPP Swivel x -08 Push-On Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 07.390-8-8 Danfoss
Price: 8.45 USD
Availability: InStock

$8.45 - $8.45

$8.45

$8.45 - $8.45

$8.45

Aeroquip® by Danfoss
Socketless (Push-On Hose Barb) Reusable Hose Fitting - Female Metric BSPP Swivel - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 07.390-8-8 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female BSPP, 1/2in Push-On Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2556 Series \| 2565 Series \| FC332 Series \| FC647 Series \| H201 Series \| 35FH Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ
07.390-4-4	-04	1/4-19	1.38"	0.63"	0.16"
07.390-6-6	-06	3/8-19	1.54"	0.67"	0.30"
07.390-8-8	-08	1/2-14	1.73"	0.71"	0.39"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
