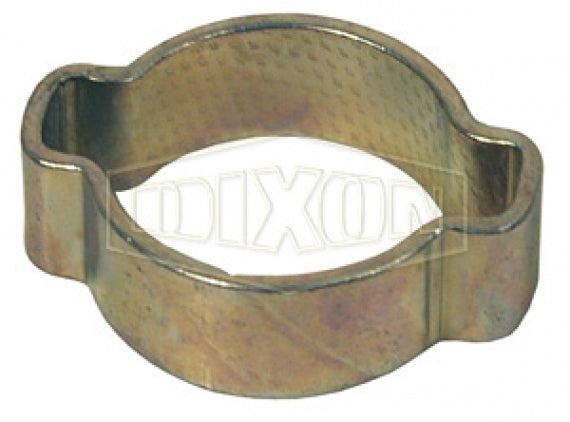

0811 by Dixon Valve | Pinch-On Clamp | Double Ear | 0 .275" Band Width | 3/8" Nominal Size | Clamp Range: 0.319" Closed to 0.433" Open | Zinc Plated Steel | Box of 100

$73.50 - $73.50

$73.50

$80.00

$80.00 - $80.00

$80.00

Dixon Valve
Pinch-On Clamps | Double Ear

Quantity

Specifications for Variant SKU: 0811 Dixon \| 100 \|
Material(s):	Zink-Plated Steel
Clamp Width:	0.275
Minimum Clamp I.D.:	0.319
Maximum Clamp I.D.:	0.433

Note:
When ordering double ear clamps, select nominal clamp size nearest to, but always larger than, the O.D. of material to be clamped after insert has been fitted.
Installation Tools:
Standard Jaw Clamp Tool 1098 Side Jaw Clamp Tool 1099

Zinc Plated Steel Part Number	304 Stainless Steel Part Number	Nominal Size	Range		Band Width
Zinc Plated Steel Part Number	304 Stainless Steel Part Number	Nominal Size	Closed	Open	Band Width
0305	0305R	3/16"	0.134"	0.197"	0.197"
0507	0507R	1/4"	0.197"	0.276"	0.236"
0709	0709R	5/16"	0.276"	0.354"	0.275"
0811	0811R	3/8"	0.319"	0.433"	0.275"
1113	1113R	1/2"	0.425"	0.512"	0.275"
1315	1315R	9/16"	0.492"	0.591"	0.295"
1517	1517R	19/32"	0.551"	0.669"	0.315"
1518	1518R	5/8"	0.591"	0.709"	0.315"
1720	1720R	3/4"	0.638"	0.787"	0.335"
1922	1922R	13/16"	0.709"	0.866"	0.354"
2023	2023R	7/8"	0.748"	0.906"	0.354"
2225	2225R	15/16"	0.827"	0.984"	0.394"
2327	2327R	1"	0.886"	1.063"	0.394"
2731	2731R	1-1/8"	1.035"	1.221"	0.394"
3437	3437R	1-7/16"	1.260"	1.457"	0.394"
3740	3740R	1-1/2"	1.378"	1.575"	0.394"
