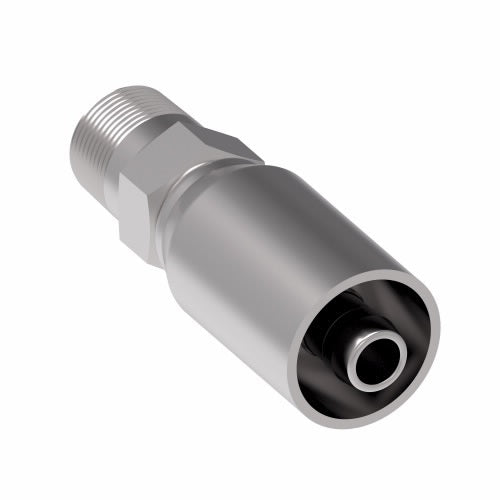

08E-106 Weatherhead by Danfoss | Everflex E Series | Male Pipe Rigid Crimp Fitting | -06 Male NPTF x -08 Hose Barb | Steel
08E-106 Weatherhead by Danfoss | Everflex E Series | Male Pipe Rigid Crimp Fitting | -06 Male NPTF x -08 Hose Barb | Steel
08E-106 Weatherhead by Danfoss | Everflex E Series | Male Pipe Rigid Crimp Fitting | -06 Male NPTF x -08 Hose Barb | Steel
08E-106 Weatherhead by Danfoss | Everflex E Series | Male Pipe Rigid Crimp Fitting | -06 Male NPTF x -08 Hose Barb | Steel

08E-106 Weatherhead by Danfoss | Everflex E Series | Male Pipe Rigid Crimp Fitting | -06 Male NPTF x -08 Hose Barb | Steel

$19.44 - $19.44
$19.44
$19.44 - $19.44
$19.44

Weatherhead by Danfoss
Everflex 'E' Series Crimp Fitting - Male Pipe - Straight
Specifications for Variant SKU: 08E-106 Danfoss
Brand: Weatherhead
Series: Everflex E Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Male NPTF, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: H009 Series  |   H243 Series  |   H275 Series  |   H277 Series  |   H285 Series
Applications:
  • General purpose low and medium pressure hydraulics.
  • Use H277 where shock hazards exist.
Pressure:
  • Determined by maximum operating pressure for hose size and hose end configuration whichever is lesser.
Material:
  • Low carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H009, H243, H275, H277, H285
Warning:
  • For PTFE hose applications, 'E' series fittings must be used with H243 and H277 0.030" thin wall hose only
Carbon Steel
Part Number		 Stainless Steel
Part Number		 Hose I.D. Pipe Size Thread Size A Hose Cut-Off
Factor		 Hole Dia. Hex E
03E-102 - 3/16" 1/8" 1/8-27 1.58" 0.75" 0.09" 7/16"
03E-104 03ER-104 3/16" 1/4" 1/4-18 1.83" 1.00" 0.09" 9/16"
04E-102 - 1/4" 1/8" 1/8-27 1.60" 0.75" 0.16" 7/16"
04E-104 - 1/4" 1/4" 1/4-18 1.79" 1.00" 0.16" 9/16"
04E-106 - 1/4" 3/8" 3/8-18 1.82" 1.00" 0.16" 11/16"
05E-104 05E-104 5/16" 1/4" 1/4-18 1.86" 0.94" 0.22" 9/16"
05E-106 - 5/16" 3/8" 3/8-18 1.89" 1.00" 0.22" 11/16"
06E-104 - 3/8" 1/4" 1/4-18 1.90" 1.00" 0.27" 9/16"
06E-106 - 3/8" 3/8" 3/8-18 1.93" 1.00" 0.27" 11/16"
06E-108 - 3/8" 1/2" 1/2-14 2.17" 1.25" 0.27" 7/8"
08E-106 - 1/2" 3/8" 3/8-18 2.02" 1.00" 0.38" 3/4"
08E-108 08ER-108 1/2" 1/2" 1/2-14 2.27" 1.25" 0.38" 7/8"
- 10ER-112 - - - - - - -
12E-112 - 3/4" 3/4" 3/4-14 2.51" 1.31" 0.61" 1-1/16"
16E-116 - 1" 1" 1-11-1/2 2.95" 1.63" 0.84" 1-3/8"

Note: Drawings may differ from actual parts.
