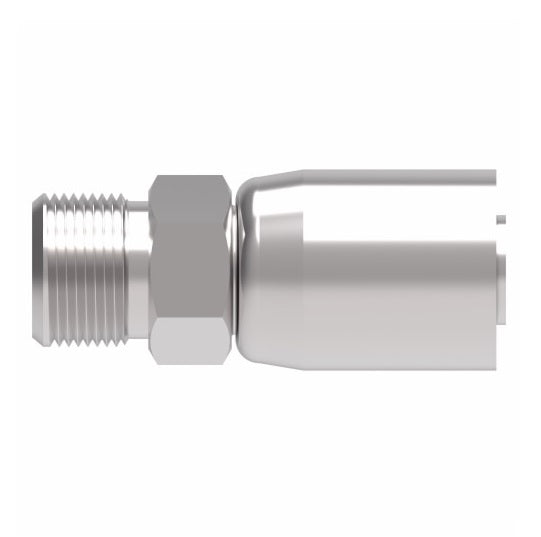

08E-Y60 Weatherhead by Danfoss | Everflex E Series | Air Brake Connection (Tube) Crimp Fitting | -10 Male NPTF x -08 Hose Barb | Steel

08E-Y60 Weatherhead by Danfoss | Everflex E Series | Air Brake Connection (Tube) Crimp Fitting | -10 Male NPTF x -08 Hose Barb | Steel

Name: 08E-Y60 Weatherhead by Danfoss | Everflex E Series | Air Brake Connection (Tube) Crimp Fitting | -10 Male NPTF x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 08E-Y60 Danfoss
Price: 18.09 USD
Availability: InStock

$18.09 - $18.09

$18.09

$18.09 - $18.09

$18.09

Weatherhead by Danfoss
Everflex 'E' Series Crimp Fitting - Air Brake Connection (Tube) - Straight

Quantity

Specifications for Variant SKU: 08E-Y60 Danfoss
Brand:	Weatherhead
Series:	Everflex E Series
Shape (Orientation):	Straight
Ends Configuration:	5/8in Male NPTF, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	H243 Series

Applications:
General purpose low and medium pressure hydraulics.
Pressure:
Determined by maximum operating pressure for hose size and hose end configuration whichever is lesser.
Material:
Low carbon steel Plating: Zinc; clear trivalent chromate
Compatible Hose:
For use with H243 PTFE hose Only.
Warning:
For PTFE hose applications, 'E' series fittings must be used with H243 and H277 0.030" thin wall hose only


Steel Part Number	Hose I.D.	Tube Size	Thread Size	A	Hose Cut-Off Factor	Hole Dia.	Hex E	Sleeve Part Number	Nut Part Number
-	1/2"	1/2"	11/16-20	2.12"	1.06"	0.38"	3/4"	1360x8	1361x8
08E-Y60	1/2"	5/8"	13/16-18	2.18"	1.13"	0.38"	7/8"	1360x10	1361x10
12E-Y62	3/4"	3/4"	1-18	2.38"	1.19"	0.61"	1"	1360x12	1361x12

Note: Drawings may differ from actual parts.
