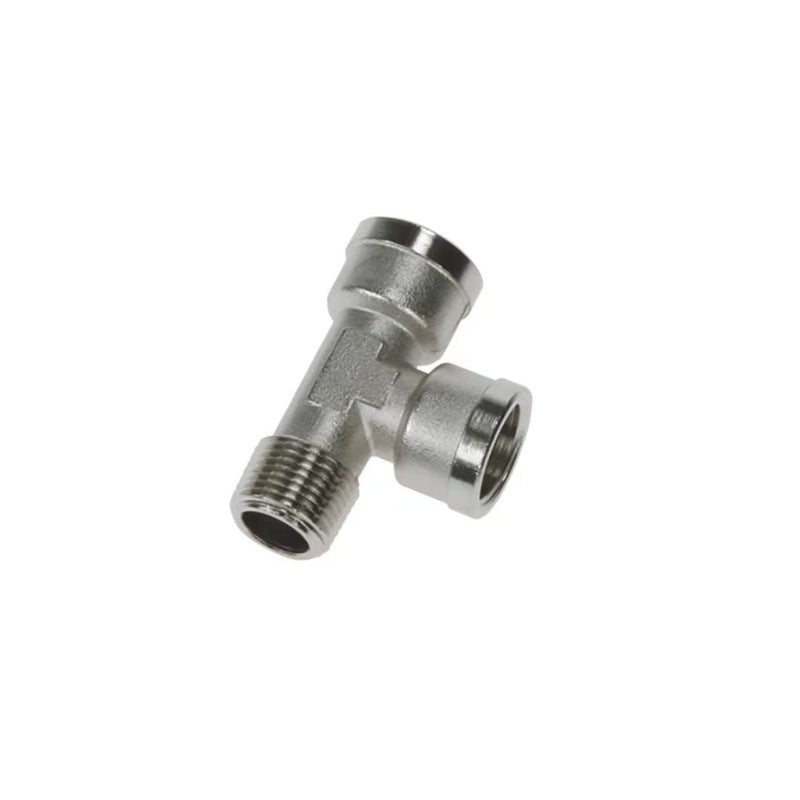

0917 00 27 by Parker | Legris Stud Fitting | 3/4" Male BSPT Thread x 3/4" Female BSSP Thread | 70 mm Length | Tee | Nickel-Plated Brass | Pack of 25

Save $300.18

$750.45

$750.45 - $750.45

$750.45

$450.27

$450.27 - $450.27

$450.27

by Parker Hannifin
Nickel-Plated Brass Adapters:0917 Equal Stud Run Tee, Female BSPP/Male BSPT Thread

Package Quantity: 25 Units

Specifications for Variant SKU: 0917 00 27 Parker \| 25 \|
Series:	0917 Series
Shape (Orientation):	Tee
Material(s):	Nickel-Plated Brass


Adapters and Manifolds:


Part Number	C1	C2	E	G	H	H1	J	L	Kg
0917 00 10	1/8"	1/8"	8 mm	13 mm	17 mm	18.5 mm	10 mm	18.5 mm	.019 Kg
0917 00 13	1/4"	1/4"	11 mm	17 mm	22.5 mm	22.5 mm	12 mm	22.5 mm	.038 Kg
0917 00 17	3/8"	3/8"	11.5 mm	21 mm	25.5 mm	25.5 mm	15 mm	25.5 mm	.058 Kg
0917 00 21	1/2"	1/2"	14 mm	26 mm	30 mm	30 mm	19 mm	30 mm	.089 Kg
0917 00 27	3/4"	3/4"	16.5 mm	32 mm	34.5 mm	35.5 mm	22 mm	35.5 mm	.136 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
