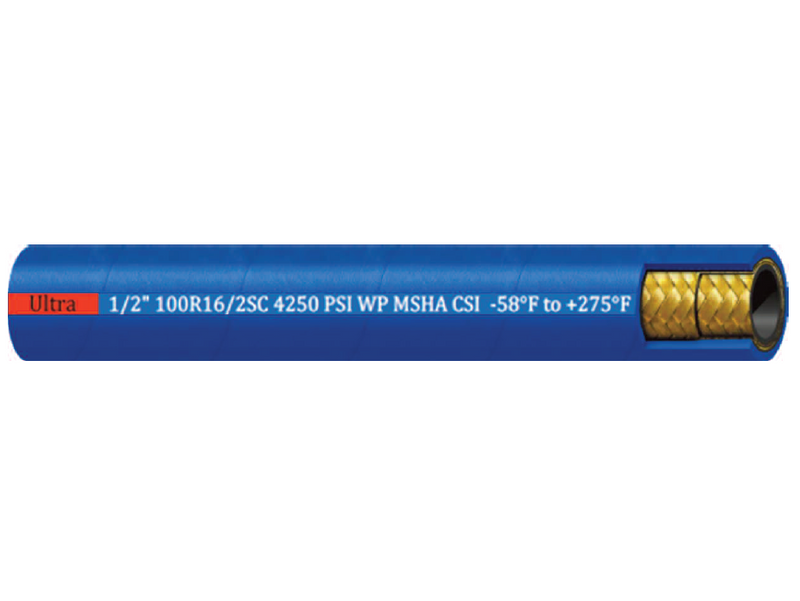

1/2" ULTRA R16 Couplamatic Import Ultra Two Wire Hi-Pressure High/Low Temp Hydraulic Hose (100R16 / DIN 2SC) - 1/2" ID - 300ft

1/2" ULTRA R16 by Couplamatic | Import Ultra Two Wire Hi-Pressure | High/Low Temp Hydraulic Hose | 100R16/DIN 2SC | 1/2" ID | 300ft

Save $1,202.13

$3,005.33

$3,005.33 - $3,005.33

$3,005.33

$1,803.20

$1,803.20 - $1,803.20

$1,803.20

Couplamatic Systems Inc.
Two Wire Braid Hoses - ULTRA R16 Import Ultra Two Wire Hi-Pressure High/Low Temp Hydraulic Hose - ULTRA 100R16 / DIN 2SC

Package Quantity: 300 FT

Specifications for Variant SKU: 1/2" ULTRA R16 Couplamatic \| 300 \|
Series:	Ultra R16 Series
Hose Color(s):	Blue
Dash Size:	-8
Internal Diameter:	0.50in
Outer Diameter:	0.812in
Applicable Specs & Approvals:	EN857, Applicable MSHA Standards, SAE 100R16
Compatible with the following Series:	A Series \| Grip Crimp Series

Ultra 100R16 / DIN 2SC — High/Low Temp

Ultra R16 Two Wire Hi-Pressure High/Low Temp Hydraulic Hose

Two-wire 100R16 / DIN 2SC hose with a blue cover and an extended temperature range — -58°F to +275°F continuous, +302°F discontinuous.

1

What is this hose used for?

High Pressure Hydraulics
High/Low Temp Applications

2

What are the key specifications?

SAE Rating

ULTRA 100R16 / DIN 2SC

Cover

Blue Abrasion and Flame Resistant Cover, MSHA approved

Reinforcement

Two Wire Braids

Temperature

-58°F to +275°F (-50°C to +135°C)
(+302°F/150°C Discontinuous)

3

What are the main product features?

Extended temperature range — -58°F to +275°F continuous, +302°F/150°C discontinuous.
Blue cover — identifies the Ultra construction at a glance.
Crimps to 100R1AT specifications — one-wire thin cover crimp dimensions.
Tighter bend radius than R1 and R2 — easier routing on tight equipment.
MSHA approved — abrasion and flame resistant cover.

4

Which sizes are available?

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Reel Footage
1/4" ULTRA R16	1/4"	0.530"	5,800 lbs.	23,200 lbs.	2"	18 lbs.	500ft
3/8" ULTRA R16	3/8"	0.687"	5,000 lbs.	20,000 lbs.	2.5"	27 lbs.	400ft
1/2" ULTRA R16	1/2"	0.812"	4,250 lbs.	17,000 lbs.	3.5"	35 lbs.	300ft
5/8" ULTRA R16	5/8"	0.937"	3,625 lbs.	14,500 lbs.	4"	40 lbs.	250ft
3/4" ULTRA R16	3/4"	1.090"	3,125 lbs.	12,500 lbs.	4.8"	54 lbs.	250ft
1" ULTRA R16	1"	1.405"	2,500 lbs.	10,000 lbs.	6"	74 lbs.	200ft

i

Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
