1/4" H7TLNC Couplamatic Twin Line Non-Conductive Themoplastic Hydraulic Hose - Polyester Braid (SAE 100R7) - 1/4" ID - 250ft

1/4" H7TLNC by Couplamatic | Twin Line Non-Conductive | Thermoplastic Hydraulic Hose | Polyester Braid | SAE 100R7 | 1/4" ID | 250ft

Save $656.67

$1,641.67

$1,641.67 - $1,641.67

$1,641.67

$985.00

$985.00 - $985.00

$985.00

Couplamatic Systems Inc.
Polyester Braid - H7TLNC Non-Conductive Twin Line Thermoplastic Hydraulic Hose - (SAE 100R7)

Package Quantity: 250 FT

Specifications for Variant SKU: 1/4" H7TLNC Couplamatic \| 250 \|
Series:	H7TLNC Series
Hose Color(s):	Orange
Dash Size:	-4
Internal Diameter:	0.25in
Outer Diameter:	0.508in
Tubing Construction:	Nylon
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	SAE 100R7
Compatible with the following Series:	3 Series \| T Series

SAE 100R7 — Twin Line, Non-Conductive

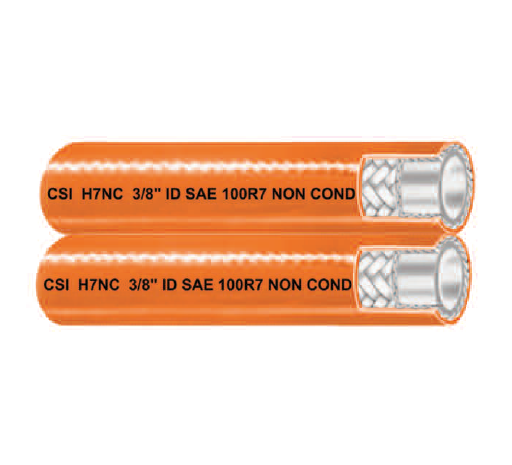

H7TLNC Twin Line Non-Conductive Thermoplastic Hydraulic Hose

Bonded twin line SAE 100R7 hose with an orange non-conductive polyurethane cover — paired supply and return for utility booms and aerial equipment.

1

What is this hose used for?

Medium Pressure Hydraulics
Industrial
Agricultural

2

What are the key specifications?

SAE Rating

SAE 100R7

Cover

Orange Non-Conductive Polyurethane, Non-Perforated

Tube

Nylon

Reinforcement

Polyester Braid

Temperature

-40°F to +212°F (-40°C to +100°C)

Size Range

1/4" to 1/2"

3

What are the main product features?

Non-conductive cover — orange polyurethane, non-perforated, for work near energized conductors.
Bonded twin line — supply and return stay paired and tangle-free.
Nylon tube, polyester braid — medium pressure hydraulic service.
High visibility orange — the standard identification color for non-conductive hose.

4

Which sizes are available?

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Coil Footage
1/4" H7TLNC	1/4"	0.508"	2,750 lbs.	11,000 lbs.	1.5"	12 lbs.	250ft
5/16" H7TLNC	5/16"	0.585"	2,500 lbs.	10,000 lbs.	1.75"	16.6 lbs.	250ft
3/8" H7TLNC	3/8"	0.650"	2,250 lbs.	9,000 lbs.	2"	21 lbs.	250ft
1/2" H7TLNC	1/2"	0.815"	2,000 lbs.	8,000 lbs.	3"	34 lbs.	250ft

i

Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
