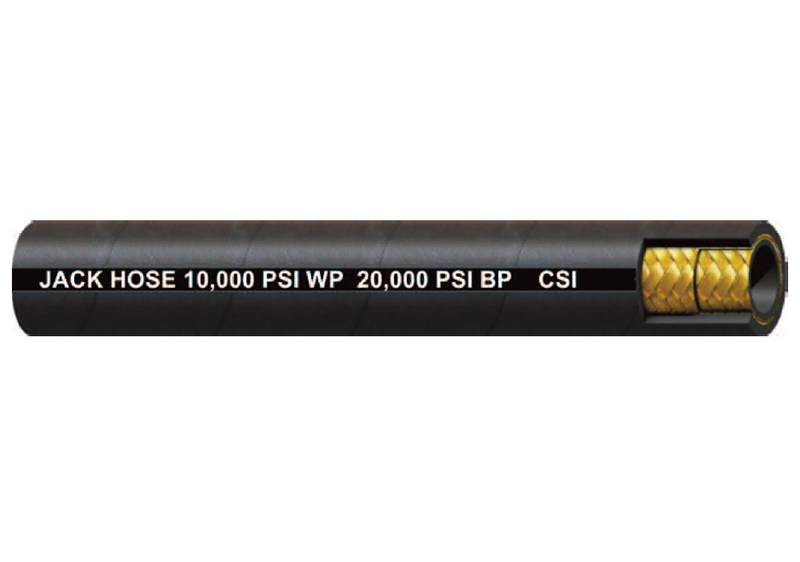

1/4" JH2 Couplamatic Two Wire Hydraulic Jack Hose - 1/4" ID - 500ft

1/4" JH2 by Couplamatic | Two Wire Hydraulic Jack Hose | 1/4" ID | 500ft

Save $744.45

$1,861.12

$1,861.12 - $1,861.12

$1,861.12

$1,116.67

$1,116.67 - $1,116.67

$1,116.67

Couplamatic Systems Inc.
Two Wire Braids - 2:1 Design Factor - Two Wire Hydraulic Jack Hose

Package Quantity: 500 FT

Specifications for Variant SKU: 1/4" JH2 Couplamatic \| 500 \|
Series:	JH2 Series
Hose Color(s):	Black
Dash Size:	-4
Internal Diameter:	0.25in
Outer Diameter:	0.593in
Compatible with the following Series:	Grip Crimp Series \| A Series

Hydraulic Jack Hose — 2:1 Design Factor

JH2 Two Wire Hydraulic Jack Hose

Two wire braid hose built on a 2:1 design factor for high pressure hydraulic jacking, where the standard 4:1 hydraulic design factor is not the governing requirement.

1

What is this hose used for?

High Pressure Hydraulic Jacking Applications

2

What are the key specifications?

Cover

Abrasion and Flame Resistant Cover

Reinforcement

Two Wire Braids - 2:1 Design Factor

Temperature

-40°F to +212°F (-40°C to +100°C)

Working Pressure

10,000 lbs.

3

What are the main product features?

2:1 design factor — purpose-built for hydraulic jacking service, not general hydraulics.
Two wire braids — very high working pressures in a compact hose.
Abrasion and flame resistant cover — withstands job site handling.
Terminates with Male NPTF solid A Series couplings — per the manufacturer’s coupling recommendation for jack hose.

4

Which sizes are available?

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Reel Footage
1/4" JH2	1/4"	0.593"	10,000 lbs.	20,000 lbs.	3.2"	24 lbs.	500ft
3/8" JH2	3/8"	0.750"	10,000 lbs.	20,000 lbs.	3.8"	34 lbs.	400ft

i

Jack hose is built on a 2:1 design factor and is intended for hydraulic jacking service only. Do not substitute it for general hydraulic hose, and do not exceed the working pressure shown. Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
