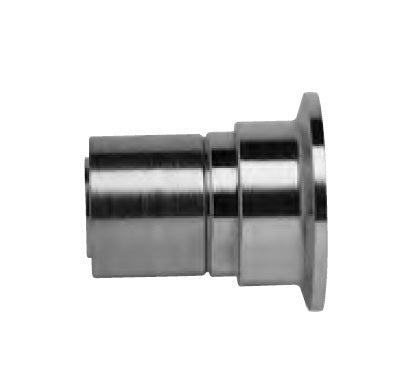

10-S.37-316 Weatherhead by Danfoss | Everswage | Sanitary Tri Clamp Crimp Fitting for Everflex Hose | 1/2" Hose Barb | Stainless steel

10-S.37-316 Weatherhead by Danfoss | Everswage | Sanitary Tri Clamp Crimp Fitting for Everflex Hose | 1/2" Hose Barb | Stainless steel

$163.87 - $163.87
$163.87
$163.87 - $163.87
$163.87

Weatherhead by Danfoss
Everswage Crimp Fitting for Everflex Hose - Sanitary Tri Clamp - Straight
Specifications for Variant SKU: 10-S.37-316 Danfoss
Brand: Weatherhead
Series: Everswage Series
Shape (Orientation): Straight
Material(s): Stainless steel
Compatible with the following Series: Everflex S-Series  |   Everflex SC-Series
About:
  • Everswage hose ends are permanently attached to Everflex Smooth Bore hose using a swaging process.
  • The unique design of the Everswage collar allows a hose assembly fabricator to slide several collars at once on the hose. This significantly reduces the time required to fabricate an assembly.
Note:
  • 316 Stainless steel wetted parts.
  • The operating pressure of 1/2" I.D. hoses are lowered to 1500 psi, and 5/8" I.D. hoses are lowered to 1250 psi when BRASS Everswage fittings are used.
Compatible Hose:
  • For use with Everflex Hoses S, SC
Warning:
  • Selection of the proper end fitting for the hose end application is essential to the proper operation and safe use of the hose and related equipment. Inadequate attention to the selection of the end fittings for your application can result in leaking or the hose end blowing off the hose, leading to serious personal injury, death or property damage.
Part Number
Stainless Steel		 Hose I.D. Nominal I.D. A Hose
Cut-off
Factor**		 D G
10-S.37-316 1/2" 0.45" 1.5" 0.6875" 0.985" 0.375"
16-S.87-316 7/8" 0.81" 2.0" 0.6875" 1.984" 0.86"

** To determine the correct length of hose, subtract the cut-off factor for each end fitting from the overall length of assembly.

Note: Drawings may differ from actual parts.
