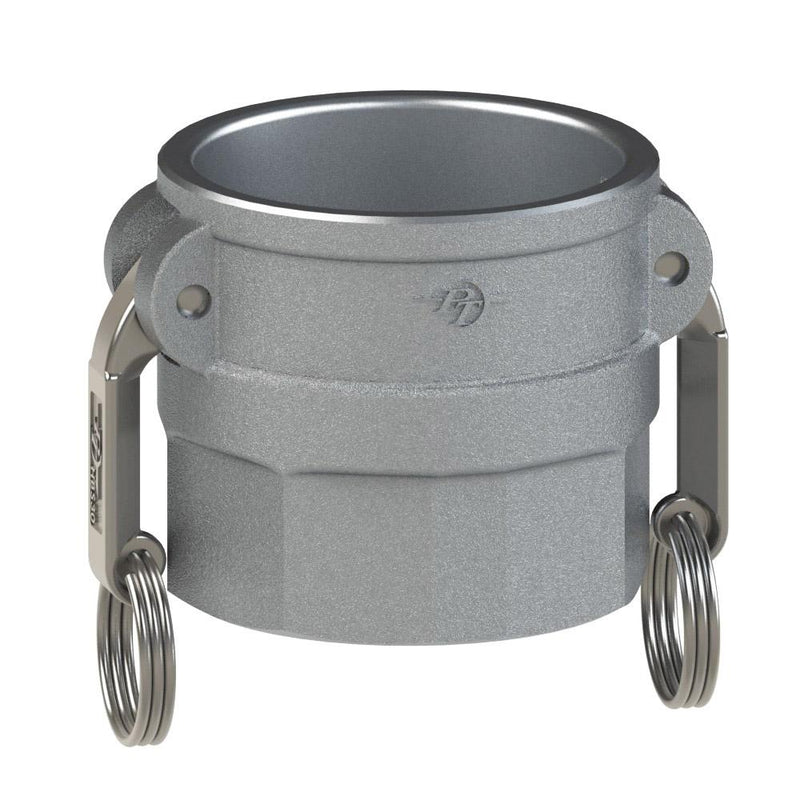

1000401 (E05D) by PT-Coupling | Cam & Groove Adapter | Type D | 1/2" Coupler x 1/2" Female NPT | Aluminum/HBS | Buna-N Seal

Save $10.24

$27.60

$27.60 - $27.60

$27.60

$17.36

$17.36 - $17.36

$17.36

PT Coupling
Cam and Groove (Camlock) Adapter | Type D | Coupler x Female NPT | Aluminum/HBS | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 1000401 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type D
Ends Configuration:	1/2in Female Cam & Groove, 1/2in Female NPT
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Overview:
PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
HBS cam arms are made of 300 series Stainless Steel. 8, 10, and 12 inch couplers are 4-cam designs with the STA-LOK® positive locking feature. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA


Part Name	Item #	Coupler Size	Thread (Female NPT)	O.D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Inside Diameter (E)	Engagement Length	Max. Allowable Working Press. (PSI)*
E05D	1000401	1/2"	1/2"	4.21"	1.82"	2.00"	0.67"	1.03"	250 PSI
1/2D	1000405	3/4"	1/2"	4.51"	2.11"	2.10"	0.67"	0.97"	250 PSI
07D	1000407	3/4"	3/4"	4.51"	2.11"	2.10"	0.88"	0.97"	250 PSI
10D	1000410	1"	1"	5.10"	2.44"	2.50"	0.97"	1.19"	250 PSI
12D	1000412	1-1/4"	1-1/4"	6.86"	3.26"	2.70"	1.25"	1.44"	250 PSI
15D	1000415	1-1/2"	1-1/2"	7.16"	3.56"	2.80"	1.50"	1.48"	250 PSI
20D	1000420	2"	2"	7.54"	3.94"	3.10"	1.88"	1.75"	250 PSI
25D	1000425	2-1/2"	2-1/2"	8.03"	4.43"	3.40"	2.38"	1.75"	200 PSI
30D	1000430	3"	3"	9.56"	5.46"	3.50"	2.88"	1.84"	200 PSI
40D	1000440	4"	4"	10.66"	6.56"	3.90"	3.60"	1.87"	150 PSI
50D	1000450	5"	5"	11.67"	7.57"	4.10"	4.50"	1.97"	75 PSI
60D	1000460	6"	6"	16.26"	10.16"	4.40"	5.50"	2.19"	75 PSI
80D	1000480**	8"	8"	18.23"	12.13"	4.80"	7.50"	2.15"	50 PSI
100D	1000490**	10"	10"	20.66"	14.56"	5.50"	9.40"	2.55"	50 PSI
120D	1000492**	12"	12"	22.72"	16.62"	5.70"	11.40"	2.55"	50 PSI

** 8, 10, and 12 inch couplers are 4-cam designs with the STA-LOK® positive locking feature.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
