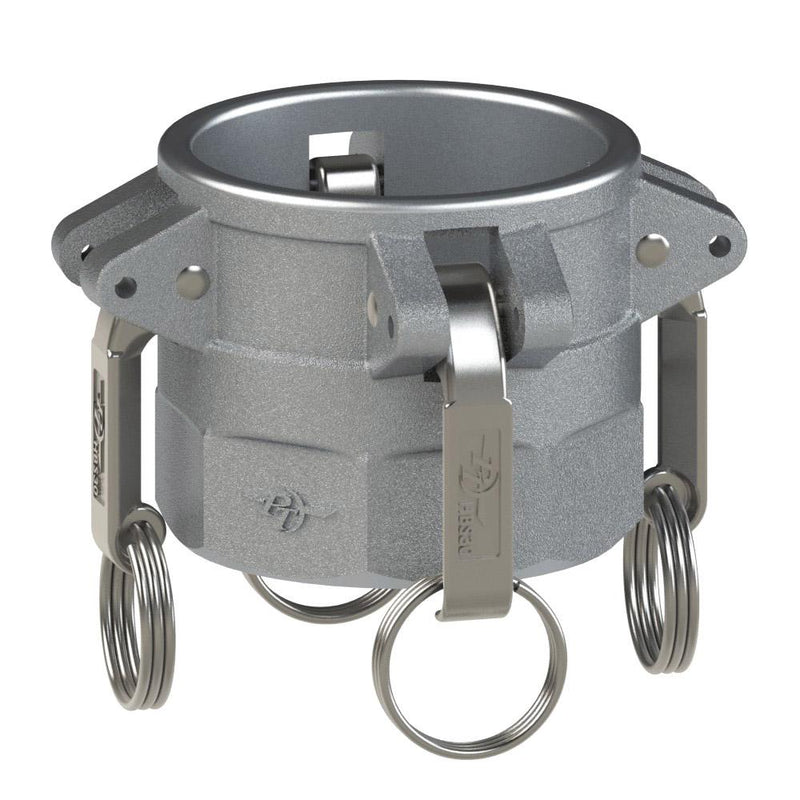

1000415H (15DHD) by PT-Coupling | Heavy Duty Cam & Groove Adapter | Type DHD | 1-1/2" Coupler x 1-1/2" Female NPT | Aluminum | Buna-N Seal

Save $78.23

$210.75

$210.75 - $210.75

$210.75

$132.52

$132.52 - $132.52

$132.52

PT Coupling
Heavy Duty Cam & Groove (Camlock) Adapter | Type DHD | Coupler x Female NPT | Aluminum | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 1000415H PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type D
Ends Configuration:	1-1/2in Female Cam & Groove, 1-1/2in Female NPT
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. 2-1/2" and smaller couplers come standard with 2 cam arms while 3" and larger couplers come with 4 STA-LOK® II cam arms. Made in the USA

Part Name	Item #	Heavy Duty Coupler	Female NPT Thread	Max. Allowable Working Press. (PSI)*
15DHD	1000415H	1-1/2"	1-1/2"	500 PSI
30DHD	10004304CM	3"	3"	400 PSI
40DHD	10004404CM	4"	4"	300 PSI
60DHD	10004604CM	6"	6"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
