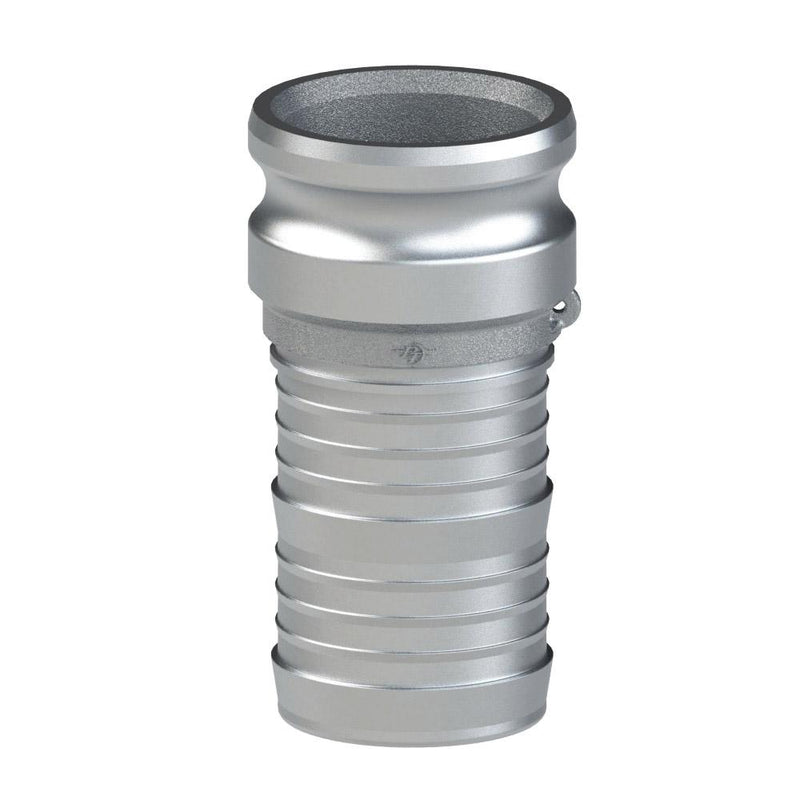

1000540H (40EHD) by PT-Coupling | Heavy Duty Cam & Groove Fitting | Type EHD | 4" Adapter x 4" Hose Shank | Aluminum | Buna-N Seal

Save $68.52

$184.60

$184.60 - $184.60

$184.60

$116.08

$116.08 - $116.08

$116.08

PT Coupling
Heavy Duty Cam & Groove (Camlock) Fitting | Type EHD | Adapter x Hose Shank | Aluminum | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 1000540H PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type E
Ends Configuration:	4in Male Cam & Groove, 4in Hose Barb
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. 2-1/2" and smaller couplers come standard with 2 cam arms while 3" and larger couplers come with 4 STA-LOK® II cam arms. Made in the USA

Part Name	Item #	Heavy Duty Adapter	Hose Shank Size	Max. Allowable Working Press. (PSI)*
40EHD	1000540H	4"	4"	300 PSI
60EHD	1000560H	6"	6"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
