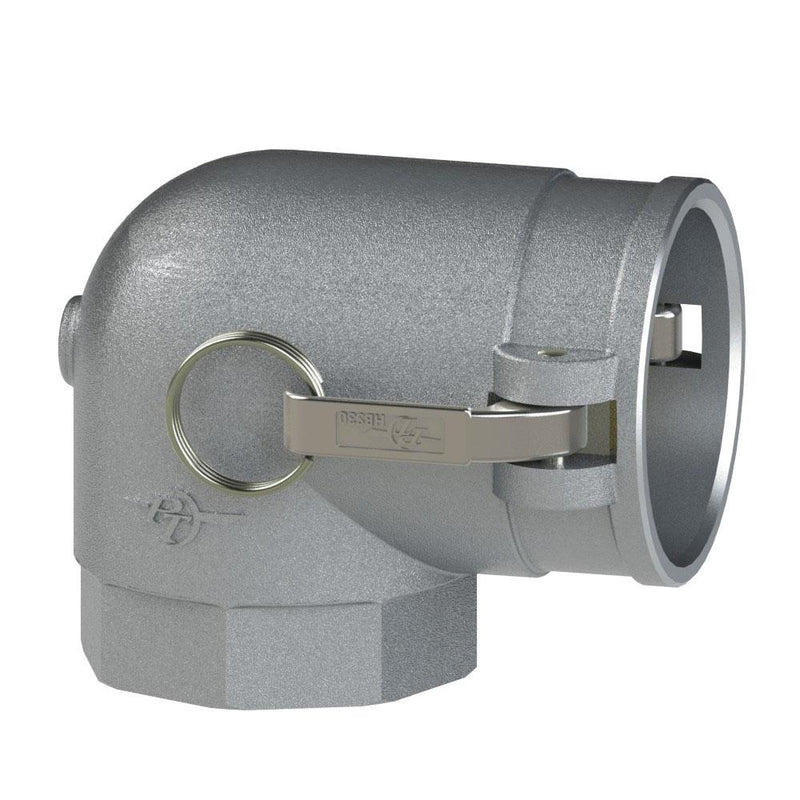

1000730 (30G) by PT-Coupling | Cam & Groove Adapter with Check Valve | Type G | 90° Elbow | 3" Female NPT x 3" Coupler | Aluminum/HBS | Buna-N Seal

Save $91.01

$245.18

$245.18 - $245.18

$245.18

$154.17

$154.17 - $154.17

$154.17

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 1000730 PT-Coupling
Shape (Orientation):	90 Degree Elbow
Cam Type:	Type D
Ends Configuration:	3in Female NPT, 3in Female Cam & Groove
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
HBS cam arms are made of 300 series Stainless Steel. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Aluminum & Brass G-Elbows are assembled with Brass check valve assemblies. Less than 5 PSI required to start flow in the full flow direction. Made in the USA


Part Name	Item #	Orientation	Female NPT Thread	Coupler Size	Max. Allowable Working Press. (PSI)*
20G	1000720	90°	2"	2"	250 PSI
25G	1000725	90°	2-1/2"	2-1/2"	200 PSI
30G	1000730	90°	3"	3"	200 PSI
40G	1000740	90°	4"	4"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
