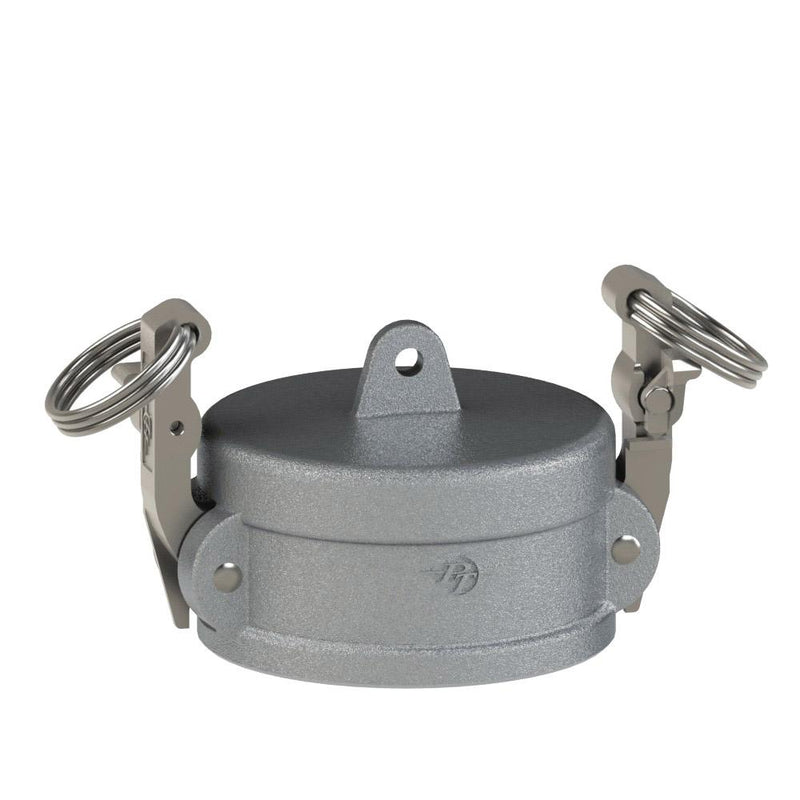

1001160L2 (60V SLII) by PT-Coupling | STA-LOK® II Cam & Groove Dust Cap | Type V | 6" Coupler | Aluminum/SLS

Name: 1001160L2 (60V SLII) by PT-Coupling | STA-LOK® II Cam & Groove Dust Cap | Type V | 6" Coupler | Aluminum/SLS
Brand: PT-Coupling
SKU: 1001160L2 PT-Coupling
Price: 156.63 USD
Availability: InStock

Save $92.45

$249.08

$249.08 - $249.08

$249.08

$156.63

$156.63 - $156.63

$156.63

PT Coupling
STA-LOK® II Cam & Groove (Camlock) Dust Cap | Type V | Aluminum/SLS

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 1001160L2 PT-Coupling
Series:	STA-LOK II
Cam Type:	Type DC
Ends Configuration:	6in Female Cam & Groove
Material(s):	Aluminum

Overview:
STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
SLS cam arms are made of 316 Stainless Steel. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA


Part Name	Item #	Coupler Size	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Chain Lug Extension (G)	Max. Allowable Working Press. (PSI)*
10V SLII	1001110L2	1"	5.10"	2.44"	1.60"	0.62"	250 PSI
12V SLII	1001112L2	1-1/4"	6.86"	3.26"	1.89"	0.60"	250 PSI
15V SLII	1001115L2	1-1/2"	7.16"	3.56"	1.96"	0.86"	250 PSI
20V SLII	1001120L2	2"	7.54"	3.94"	2.25"	0.76"	250 PSI
25V SLII	1001125L2	2-1/2"	8.03"	4.43"	2.28"	0.90"	200 PSI
30V SLII	1001130L2	3"	9.56"	5.46"	2.27"	1.03"	200 PSI
40V SLII	1001140L2	4"	10.66"	6.56"	2.34"	0.99"	150 PSI
50V SLII	1001150L2	5"	11.67"	7.57"	2.44"	1.15"	75 PSI
60V SLII	1001160L2	6"	16.26"	10.16"	2.76"	1.14"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
