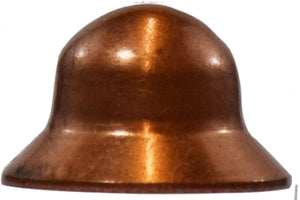

10094 (10-094) by Midland | SAE 45° Flare Fitting | Copper Bonnet | 3/16"

10094 (10-094) by Midland | SAE 45° Flare Fitting | Copper Bonnet | 3/16"

Save $1.53 Save $1.53
$3.82
$3.82 - $3.82
$3.82
$2.29
$2.29 - $2.29
$2.29

Midland Industries
Brass Fitting - SAE 45° Flare - Copper Bonnet
Specifications for Variant SKU: 10094 Midland
Material(s): Copper
Applicable Specs & Approvals: ASA, ASME, SAE, MS (Military Standards)
Applications: LP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems. Used With: Copper, Brass, Aluminum and Steel hydraulic tubing that can be flared.
SAE Rating: SAE# 010114 Conformance: Meets specifications and standards of ASA, ASME, SAE and MS (Military standards).
Vibration: Good resistance - use long nut when greater vibration resistance is required. Temperature Range: -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures
Tolerance: +/- .03 on all dimensions. Dimension data can change without notice. Please call us when dimensions are critical. Lead Free: Not Lead Free
Working Pressure Ranges:
  • Temperature and type of tubing used are important factors. However, the following table is a good guide for proper selection. Temperature 730F with copper tubing:
Assembly Instructions:
  • 1) Cut tubing to desired length. Make sure all burrs are removed and ends are cut square.
  • 2) Slide nut on tube. Threaded end "A" of nut must face out.
  • 3) Flare end of tube with a 450 flaring tool.
    • A) Measure flare diameter
    • B) Examine flare for excessive thin out.
  • 4) Lubricate threads and assemble to fitting body. Nut should be turned hand tight.
  • 5) Tighten assembly with wrench until a solid feeling is encountered. From that point, apply a one-sixth turn.
  • Note: Do not over-torque as it may damage the fitting or split the tubing at the flare.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4"
Thread Size B 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 11/16-16 3/4-16 7/8-14 1-1/16-14
Crossover Series:
464 B1 3GF 64C 57 156 FB 695 464
Part Number Size A B Approx. Weight
(Lbs.)
10094
(10-094)		 3/16" 0.16" 0.31" 0.01
10095
(10-095)		 1/4" 0.22" 0.36" 0.01
10097
(10-097)		 3/8" 0.34" 0.55" 0.01
10098
(10-098)		 1/2" 0.41" 0.66" 0.01
10099
(10-099)		 5/8" 0.44" 0.77" 0.01
10100
(10-100)		 3/4" 0.56" 0.95" 0.01

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
