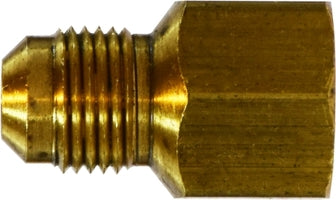

10237L (10-237L) Midland SAE 45° Flare Fitting - Light Pattern Female Adapter - 3/8" Male SAE 45° Flare x 1/2" Female NPTF - Brass

10237L by Midland | SAE 45° Flare Fitting | Light Pattern | 3/8" Male SAE 45° Flare x 1/2" Female NPTF | Adapter | Brass

Save $0.28 Save $0.28
$2.48
$2.48 - $2.48
$2.48
$2.20
$2.20 - $2.20
$2.20

Midland Industries
Brass Fitting - SAE 45° Flare - Female Adapter - Brass

Inventory @ Manufacturers Warehouse: 2459 Units
Specifications for Variant SKU: 10237L Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Male SAE 45 Flare, 1/2in Female NPTF
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards, Applicable Military Standards
Applications: LP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems. Used With: Copper, Brass, Aluminum and Steel hydraulic tubing that can be flared.
SAE Rating: SAE# 010103 Conformance: Meets specifications and standards of ASA, ASME, SAE and MS (Military standards).
Vibration: Good resistance - use long nut when greater vibration resistance is required. Temperature Range: -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures
Tolerance: +/- .03 on all dimensions. Dimension data can change without notice. Please call us when dimensions are critical. Lead Free: Not Lead Free
Working Pressure Ranges:
  • Temperature and type of tubing used are important factors. However, the following table is a good guide for proper selection. Temperature 730F with copper tubing:
Assembly Instructions:
  • 1) Cut tubing to desired length. Make sure all burrs are removed and ends are cut square.
  • 2) Slide nut on tube. Threaded end "A" of nut must face out.
  • 3) Flare end of tube with a 450 flaring tool.
    • A) Measure flare diameter
    • B) Examine flare for excessive thin out.
  • 4) Lubricate threads and assemble to fitting body. Nut should be turned hand tight.
  • 5) Tighten assembly with wrench until a solid feeling is encountered. From that point, apply a one-sixth turn.
  • Note: Do not over-torque as it may damage the fitting or split the tubing at the flare.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4"
Thread Size B 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 11/16-16 3/4-16 7/8-14 1-1/16-14
Crossover Series:
46 246 406 46 U3
Part Number Male Flare x Female NPTF A Hex Approx. Weight
(Lbs.)
10227
(10-227)		 3/16" x 1/8" 0.97" 0.56" 0.03
10228L*
(10-228L)		 1/4" x 1/8" 1.03" 0.56" 0.03
10228
(10-228)		 1/4" x 1/8" 1.03" 0.56" 0.04
10229L*
(10-229L)		 1/4" x 1/4" 1.06" 0.68" 0.06
10229
(10-229)		 1/4" x 1/4" 1.23" 0.68" 0.07
10230
(10-230)		 1/4" x 3/8" 1.18" 0.81" 0.08
10231
(10-231)		 1/4" x 1/2" 1.31" 0.94" 0.06
10232
(10-232)		 5/16" x 1/8" 1.06" 0.56" 0.05
10233
(10-233)		 5/16" x 1/4" 1.28" 0.68" 0.08
10234
(10-234)		 3/8" x 1/8" 1.09" 0.62" 0.08
10235L*
(10-235L)		 3/8" x 1/4" 1.25" 0.68" 0.08
10235
(10-235)		 3/8" x 1/4" 1.31" 0.81" 0.08
10236L*
(10-236L)		 3/8" x 3/8" 1.25" 0.81" 0.08
10236
(10-236)		 3/8" x 3/8" 1.25" 0.81" 0.10
10237L*
(10-237L)		 3/8" x 1/2" 1.31" 0.94" 0.08
10237
(10-237)		 3/8" x 1/2" 1.60" 1.00" 0.16
10238
(10-238)		 3/8" x 3/4" 1.41" 1.18" 0.11
10239
(10-239)		 1/2" x 1/4" 1.37" 0.75" 0.10
10240L*
(10-240L)		 1/2" x 3/8" 1.38" 0.81" 0.12
10240
(10-240)		 1/2" x 3/8" 1.50" 0.81" 0.14
10241L*
(10-241L)		 1/2" x 1/2" 1.42" 0.94" 0.10
10241
(10-241)		 1/2" x 1/2" 1.75" 1.00" 0.12
10242L*
(10-242L)		 1/2" x 3/4" 1.40" 1.10" 0.16
10242
(10-242)		 1/2" x 3/4" 1.60" 1.12" 0.16
10243
(10-243)		 5/8" x 3/8" 1.24" 0.87" 0.12
10244L*
(10-244L)		 5/8" x 1/2" 1.51" 0.86" 0.15
10244
(10-244)		 5/8" x 1/2" 1.62" 0.94" 0.12
10245
(10-245)		 5/8" x 3/4" 1.65" 1.12" 0.17
10246
(10-246)		 3/4" x 1/2" 1.74" 1.18" 0.32
10247
(10-247)		 3/4" x 3/4" 1.75" 1.18" 0.22
10248
(10-248)		 7/8" x 3/4" 1.94" 1.31" 0.26

* "L" means light pattern: These fittings are completely interchangeable with full pattern fittings, but have been modified in some way. This modification is usually in the length of the pipe threads. Used in plumbing and light industrial.
