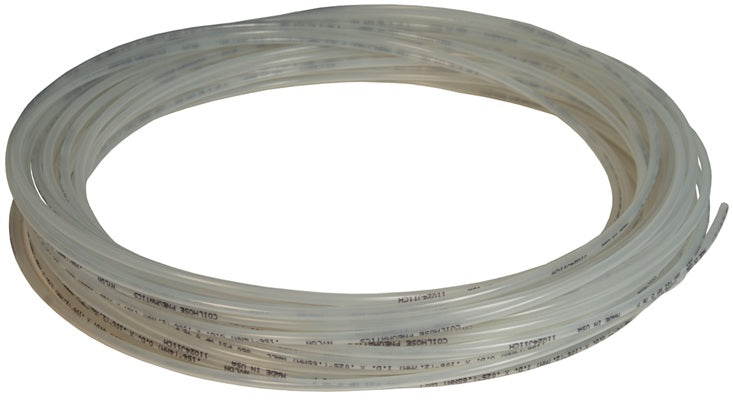

1025P0800 by Dixon Valve | Nylon Metric Tubing | 8 mm OD | 6 mm ID | 1 mm Wall Thickness | 25m Length

Save $56.67

$141.67

$141.67 - $141.67

$141.67

$85.00

$85.00 - $85.00

$85.00

Dixon Valve & Coupling
Nylon Metric Tubing

Translucent color

Resistant to fungus, abrasion, moisture, and UV

Specifications for Variant SKU: 1025P0800 Dixon
Series:	Pneumatic Fittings
Hose Color(s):	White/Off-White
Internal Diameter:	6mm
Outer Diameter:	8mm
Tubing Construction:	Nylon

Specifications:
Temperature range: -60°F to 200°F (-51°C to 93°C)

Part Number	Size O.D.	Size I.D.	Wall Thickness	Working Pressure @ 75°F (24°C)	Length
1025P0400	4mm	2.7mm	0.65mm	350 PSI	25m
1025P0600	6mm	4mm	1mm	340 PSI	25m
1025P0800	8mm	6mm	1mm	250 PSI	25m
