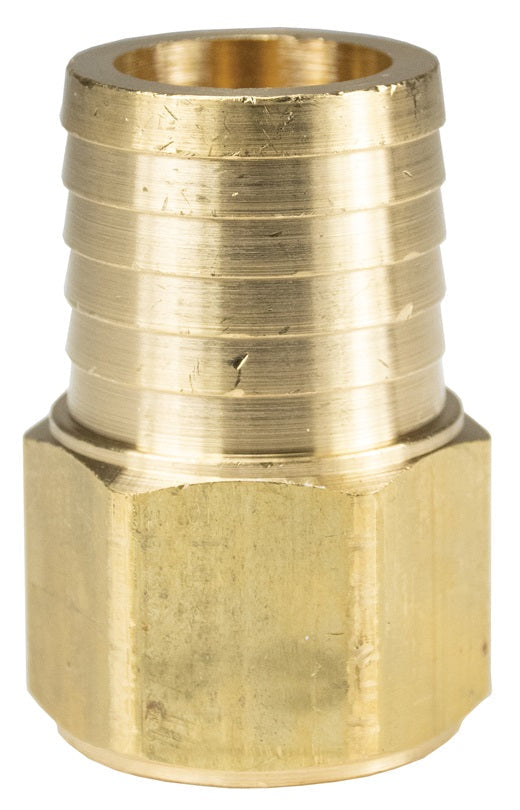

1042016C by Dixon Valve | Female Hose Barb Insert | 1" Female NPTF x 1-1/4" Hose ID | Brass

1042016C by Dixon Valve | Female Hose Barb Insert | 1" Female NPTF x 1-1/4" Hose ID | Brass

Save $8.80 Save $8.80
$23.79
$23.79 - $23.79
$23.79
$14.99
$14.99 - $14.99
$14.99

Dixon Valve
Female Hose Barb Insert | Female NPTF x Hose Barb
Specifications for Variant SKU: 1042016C Dixon
Series: 104 Series
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Hose Barb, 1in Female NPTF
Material(s): Brass
Compatible with the following Series: GS Black Multipurpose Air and Water Hose  |   GS Red Multipurpose Air and Water Hose
Construction:
  • National Pipe Tapered - Dryseal
  • Lead-Free Brass: NSF®/ANSI 61 certified Lead-Free Brass <=0.25% lead, Alloy C2745
Safety Notes:
  • All standard hose fittings are intended for use with hose clamps or crimped ferrules.
Brass Lead-Free Brass** 303 Stainless Steel
(SS Parts have NPT Threads)		 Female NPTF Hose I.D.
Previous Part Number Part Number Previous Part Number Part Number
BF11 1040202C - - - 1/8" 1/8"
BF12 1040204C - - - 1/4" 1/8"
BF151 1040302C - - - 1/8" 3/16"
BF152 1040304C - - - 1/4" 3/16"
BF21 1040402C - - - 1/8" 1/4"
BF22 1040404C 1040404CLF BF22SS 1040404SS 1/4" 1/4"
BF23 1040406C - - - 3/8" 1/4"
BF24 1040408C - - - 1/2" 1/4"
BF251 1040502C - - - 1/8" 5/16"
BF252 1040504C - - - 1/4" 5/16"
BF253 1040506C - - - 3/8" 5/16"
BF31 1040602C - - - 1/8" 3/8"
BF32 1040604C 1040604CLF BF32SS 1040604SS 1/4" 3/8"
BF33 1040606C - BF33SS 1040606SS 3/8" 3/8"
BF34 1040608C 1040608CLF - - 1/2" 3/8"
BF36 1040612C - - - 3/4" 3/8"
BF42 1040804C - - - 1/4" 1/2"
BF43 1040806C - - - 3/8" 1/2"
BF44 1040808C 1040808CLF BF44SS 1040808SS 1/2" 1/2"
BF46 1040812C - - - 3/4" 1/2"
BF53 1041006C - - - 3/8" 5/8"
BF54 1041008C - - - 1/2" 5/8"
BF56 1041012C - - - 3/4" 5/8"
BF64 1041208C - - - 1/2" 3/4"
BF66 1041212C - - - 3/4" 3/4"
BF86 1041612C - - - 3/4" 1"
BF88 1041616C 1041616CLF - - 1" 1"
BF108 1042016C - - - 1" 1-1/4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
