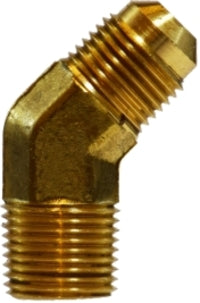

10455 (10-455) by Midland | SAE 45° Flare Fitting | 1/2" Male SAE 45° Flare x 3/8" Male NPTF | 45° Elbow | Brass

10455 (10-455) by Midland | SAE 45° Flare Fitting | 1/2" Male SAE 45° Flare x 3/8" Male NPTF | 45° Elbow | Brass

Save $3.16 Save $3.16
$7.90
$7.90 - $7.90
$7.90
$4.74
$4.74 - $4.74
$4.74

Midland Industries
Brass Fitting - SAE 45° Flare - 45° Elbow - Brass

Inventory @ Manufacturers Warehouse: 2155 Units
Specifications for Variant SKU: 10455 Midland
Shape (Orientation): 45 Degree
Ends Configuration: 1/2in Male SAE 45 Flare, 3/8in Male NPTF
Material(s): Brass
Applicable Specs & Approvals: ASA, ASME, SAE, MS (Military Standards)
Applications: LP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems. Used With: Copper, Brass, Aluminum and Steel hydraulic tubing that can be flared.
SAE Rating: SAE# 010302 Conformance: Meets specifications and standards of ASA, ASME, SAE and MS (Military standards).
Vibration: Good resistance - use long nut when greater vibration resistance is required. Temperature Range: -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures
Tolerance: +/- .03 on all dimensions. Dimension data can change without notice. Please call us when dimensions are critical. Lead Free: Not Lead Free
Working Pressure Ranges:
  • Temperature and type of tubing used are important factors. However, the following table is a good guide for proper selection. Temperature 730F with copper tubing:
Assembly Instructions:
  • 1) Cut tubing to desired length. Make sure all burrs are removed and ends are cut square.
  • 2) Slide nut on tube. Threaded end "A" of nut must face out.
  • 3) Flare end of tube with a 450 flaring tool.
    • A) Measure flare diameter
    • B) Examine flare for excessive thin out.
  • 4) Lubricate threads and assemble to fitting body. Nut should be turned hand tight.
  • 5) Tighten assembly with wrench until a solid feeling is encountered. From that point, apply a one-sixth turn.
  • Note: Do not over-torque as it may damage the fitting or split the tubing at the flare.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4"
Thread Size B 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 11/16-16 3/4-16 7/8-14 1-1/16-14
Crossover Series:
54 4945 40945 E145 159F 654F 59FF 254 47
Part Number Male SAE 45° Flare x Male NPTF A B Body Size Approx. Weight
(Lbs.)
10448
(10-448)		 1/4" x 1/8" 0.67" 0.64" 0.41" 0.04
10448B*
(10-444B)		 1/4" x 1/8" 0.67" 0.64" 0.44" 0.04
10449
(10-449)		 1/4" x 1/4" 0.75" 0.86" 0.53" 0.07
10450
(10-450)		 5/16" x 1/8" 0.78" 0.64" 0.53" 0.06
10451
(10-451)		 5/16" x 1/4" 0.81" 0.86" 0.53" 0.07
10452
(10-452)		 3/8" x 1/4" 0.91" 0.86" 0.53" 0.09
10452B*
(10-452B)		 3/8" x 1/4" 0.89" 0.86" 0.64" 0.12
10453
(10-453)		 3/8" x 3/8" 0.93" 0.94" 0.59" 0.11
10454
(10-454)		 3/8" x 1/2" 0.99" 1.17" 0.75" 0.19
10455
(10-455)		 1/2" x 3/8" 1.07" 0.88" 0.59" 0.12
10455B*
(10-455B)		 1/2" x 3/8" 1.06" 0.94" 0.76" 0.18
10456
(10-456)		 1/2" x 1/2" 1.12" 1.18" 0.75" 0.20
10460
(10-460)		 5/8" x 3/8" 1.13" 0.95" 0.81" 0.22
10457
(10-457)		 5/8" x 1/2" 1.12" 1.17" 0.78" 0.18
10458
(10-458)		 3/4" x 1/2" 1.28" 1.16" 0.88" 0.26
10459
(10-459)		 3/4" x 3/4" - - - 0.31
