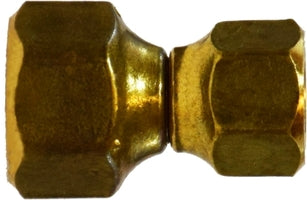

10487 (10-487) Midland SAE 45° Flare Fitting - Forged Reducing Swivel Union - 3/8" Female SAE 45° Flare x 1/4" Female SAE 45° Flare - Brass

10487 by Midland | SAE 45° Flare Fitting | Forged Reducing Swivel Union | 3/8" Female SAE 45° Flare x 1/4" Female SAE 45° Flare | Brass

Save $6.11 Save $6.11
$15.28
$15.28 - $15.28
$15.28
$9.17
$9.17 - $9.17
$9.17

Midland Industries
Brass Fitting - SAE 45° Flare - Forged Reducing Swivel Union - Brass

Inventory @ Manufacturers Warehouse: 24 Units
Specifications for Variant SKU: 10487 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Female SAE 45 Flare, 1/4in Female SAE 45 Flare
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards, Applicable Military Standards

SPECIFICATIONS

Applications: LP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems. Used With: Copper, Brass, Aluminum and Steel hydraulic tubing that can be flared.
SAE Rating: N/A Conformance: Meets specifications and standards of ASA, ASME, SAE and MS (Military standards).
Vibration: Good resistance - use long nut when greater vibration resistance is required. Temperature Range: -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures
Tolerance: +/- .03 on all dimensions. Dimension data can change without notice. Please call us when dimensions are critical. Lead Free: Not Lead Free
Working Pressure Ranges:
  • Temperature and type of tubing used are important factors. However, the following table is a good guide for proper selection. Temperature 730F with copper tubing:
Assembly Instructions:
  • 1) Cut tubing to desired length. Make sure all burrs are removed and ends are cut square.
  • 2) Slide nut on tube. Threaded end "A" of nut must face out.
  • 3) Flare end of tube with a 450 flaring tool.
    • A) Measure flare diameter
    • B) Examine flare for excessive thin out.
  • 4) Lubricate threads and assemble to fitting body. Nut should be turned hand tight.
  • 5) Tighten assembly with wrench until a solid feeling is encountered. From that point, apply a one-sixth turn.
  • Note: Do not over-torque as it may damage the fitting or split the tubing at the flare.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4"
Thread Size B 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 11/16-16 3/4-16 7/8-14 1-1/16-14
Crossover Series:
700R
Part Number Female Flare UNF A B Hex 1 Hex 2 Approx. Weight
(Lbs.)
10487
(10-487) 		3/8" x 1/4" 0.72" 0.60" 0.81" 0.62" 0.08
10488
(10-488) 		1/2" x 3/8" 0.84" 0.70" 0.94" 0.81" 0.12
10489
(10-489) 		5/8" x 1/2" 0.98" 0.82" 1.03" 0.94" 0.22

Dimension data can change without notice

Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.

Shop Parts by Midland Industries
