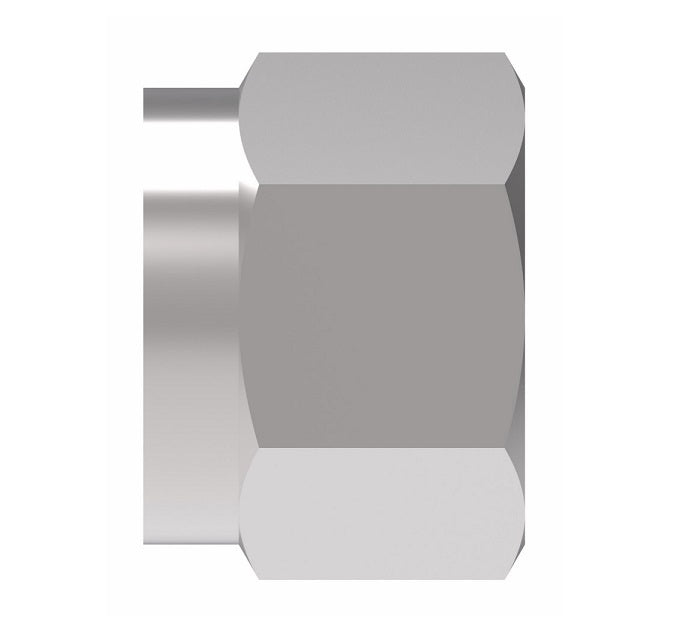

105X12 by Danfoss | Inverted Flare Tube Nut | 3/4" Tube OD | Steel
105X12 by Danfoss | Inverted Flare Tube Nut | 3/4" Tube OD | Steel
105X12 by Danfoss | Inverted Flare Tube Nut | 3/4" Tube OD | Steel
105X12 by Danfoss | Inverted Flare Tube Nut | 3/4" Tube OD | Steel

105X12 by Danfoss | Inverted Flare Tube Nut | 3/4" Tube OD | Steel

$4.55 - $4.55
$4.55
$4.55 - $4.55
$4.55

Aeroquip® by Danfoss
Inverted Flare Tube Nut
Specifications for Variant SKU: 105X12 Danfoss
Shape (Orientation): No Orientation
Material(s): Steel
Overview:
  • Danfoss brass tube fittings are made from high quality UNS CA-360 brass bar, and are precision machined to meet SAE standards and specifications.
Applications:
  • Hydraulic brake, power steering, fuel lines and transmission cooler lines.
Advantages:
  • Very low cost and reusable.
  • Seats and threads are internal and protected.
  • Compact, excellent vibration life.
  • Short nut affords very close tube bends.
Used With:
  • Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Pressure:
  • Working pressure up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundyweld (double flared) and 3500 psi with copper tubing, depending on size.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
  • Ref. SAE No. 040110.
  • Listed by Underwriter'.s Laboratories (available on special order) for fuel equipment, refrigeration and gas.
  • Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1"
Thread Size 5/16-28 3/8-24 7/16-24 1/2-20 5/8-18 11/16-18 3/4-18 7/8-18 1-1/16-16 1-3/16-16 1-5/16-16
Steel
Part Number 		Brass
Part Number 		Tube O.D. Hex
C		 D L
105X2 - 1/8" 5/16" 0.132" 0.52"
105X3 100X3 3/16" 3/8" 0.196" 0.56"
105X4 100X4 1/4" 7/16" 0.259" 0.56"
105X5 100X5 5/16" 1/2" 0.321" 0.62"
105X6 100X6 3/8" 5/8" 0.384" 0.66"
105X6x7* - 3/8" 11/16" 0.387" 0.66"
105X7 - 7/16" 11/16" 0.444" 0.68"
105X8 100X8 1/2" 3/4" 0.508" 0.74"
105X12 - 3/4" 1-1/16" 0.757" 0.88"
105X14 - 7/8" 1-3/16" 0.882" 1.06"

* 3/8" Tube to 11/16-18 Male Thread

Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
