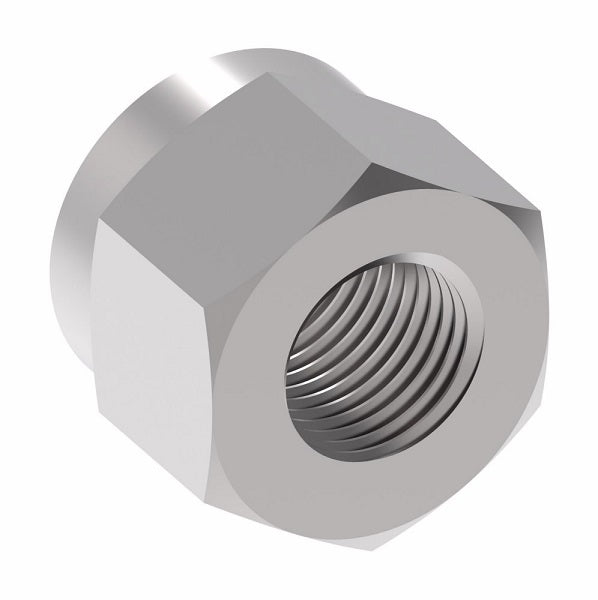

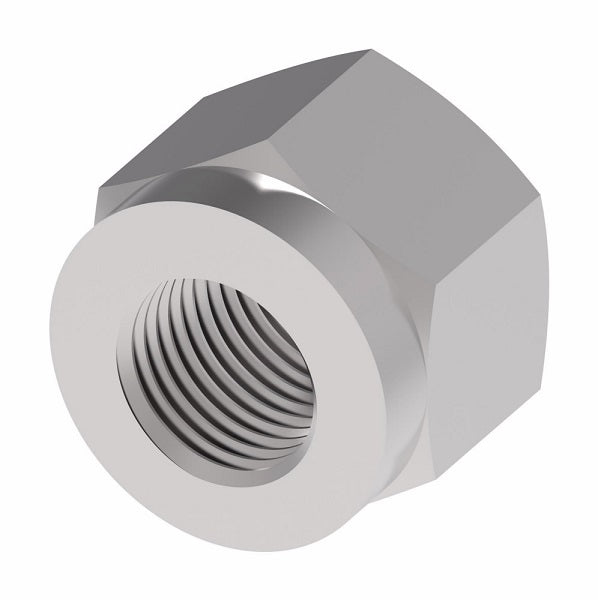

105X6 by Danfoss | Inverted Flare Tube Nut | 3/8" Tube OD | Steel
105X6 by Danfoss | Inverted Flare Tube Nut | 3/8" Tube OD | Steel
105X6 by Danfoss | Inverted Flare Tube Nut | 3/8" Tube OD | Steel
105X6 by Danfoss | Inverted Flare Tube Nut | 3/8" Tube OD | Steel

105X6 by Danfoss | Inverted Flare Tube Nut | 3/8" Tube OD | Steel

$0.64 - $0.64
$0.64
$0.64 - $0.64
$0.64

Aeroquip® by Danfoss
Inverted Flare Tube Nut
Specifications for Variant SKU: 105X6 Danfoss
Shape (Orientation): No Orientation
Material(s): Steel
Overview:
  • Danfoss brass tube fittings are made from high quality UNS CA-360 brass bar, and are precision machined to meet SAE standards and specifications.
Applications:
  • Hydraulic brake, power steering, fuel lines and transmission cooler lines.
Advantages:
  • Very low cost and reusable.
  • Seats and threads are internal and protected.
  • Compact, excellent vibration life.
  • Short nut affords very close tube bends.
Used With:
  • Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Pressure:
  • Working pressure up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundyweld (double flared) and 3500 psi with copper tubing, depending on size.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
  • Ref. SAE No. 040110.
  • Listed by Underwriter'.s Laboratories (available on special order) for fuel equipment, refrigeration and gas.
  • Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1"
Thread Size 5/16-28 3/8-24 7/16-24 1/2-20 5/8-18 11/16-18 3/4-18 7/8-18 1-1/16-16 1-3/16-16 1-5/16-16
Steel
Part Number 		Brass
Part Number 		Tube O.D. Hex
C		 D L
105X2 - 1/8" 5/16" 0.132" 0.52"
105X3 100X3 3/16" 3/8" 0.196" 0.56"
105X4 100X4 1/4" 7/16" 0.259" 0.56"
105X5 100X5 5/16" 1/2" 0.321" 0.62"
105X6 100X6 3/8" 5/8" 0.384" 0.66"
105X6x7* - 3/8" 11/16" 0.387" 0.66"
105X7 - 7/16" 11/16" 0.444" 0.68"
105X8 100X8 1/2" 3/4" 0.508" 0.74"
105X12 - 3/4" 1-1/16" 0.757" 0.88"
105X14 - 7/8" 1-3/16" 0.882" 1.06"

* 3/8" Tube to 11/16-18 Male Thread
