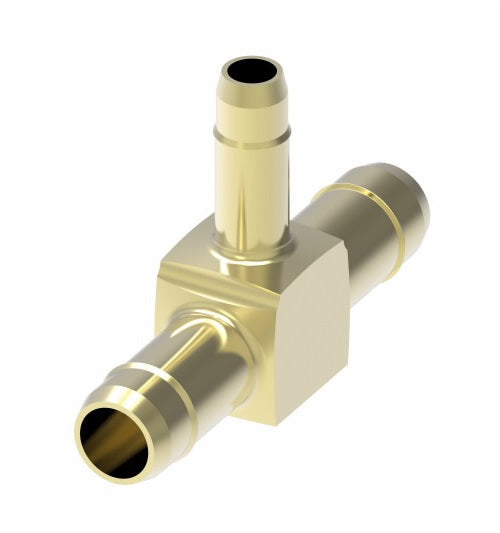

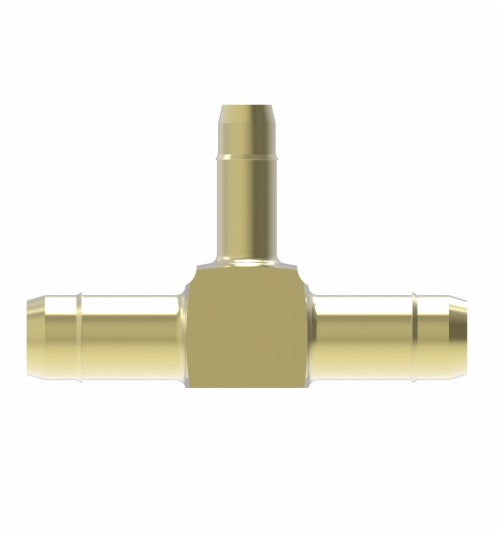

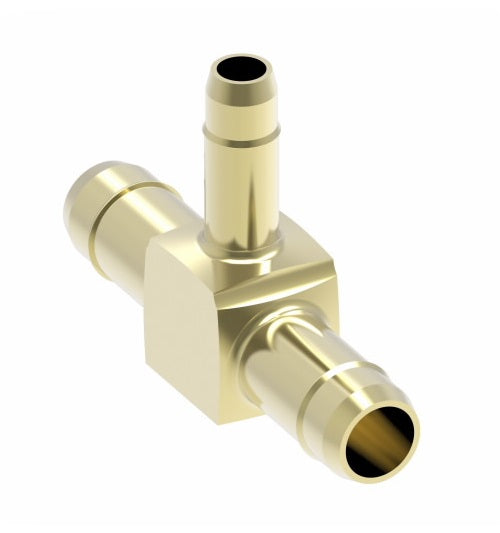

1064X6X6X4 by Danfoss | Mini-Barb Fitting | Union Tee | for 3/8" Tubing OD x 3/8" Tubing OD x 1/4" Tubing OD | Brass

$7.67

Aeroquip® by Danfoss
Mini-Barb Fitting - Union Tee

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1064X6X6X4 Danfoss
Shape (Orientation): Tee
Ends Configuration: 3/8in Hose Barb X 3/8in Hose Barb X 1/4in Hose Barb X Some Ends Match
Material(s): Brass
Compatible with the following Series: PT240 Series
Applications:
  • Temperature control circuits, test apparatus, lubricant, coolant lines, pneumatic circuits, vacuum and fluid systems.
Advantages:
  • Quick connecting - no tube preparation.
  • Hand assembly.
  • Low cost one-piece push-on design.
  • Barbed lip provides safe, positive connection.
  • Compact size permits use in extremely tight areas.
  • Excellent vibration resistance.
Used With:
  • PT240 Polyethylene tubing.
Material:
  • CA360 Brass
Pressure:
  • Will withstand burst pressures of plastic tubing.
Temperature Range:
  • Depends on tubing used.
Conformance:
  • An exclusive item with Danfoss. User approvals only.
Tubing OD D E J
5/32" 0.062" 0.113" 0.380"
*3/16" 0.078" 0.125" 0.500"
1/4" 0.127" 0.189" 0.500"
3/8" 0.196" 0.270" 0.500"
1/2" 0.312" 0.395" 0.630"

*No barb on 3/16" size.

Brass
Part Number
Tubing O.D. M N M1
1064X4 1/4" 0.70" 0.70" 0.70"
1064X6X6X4 3/8" x 3/8" x 1/4" 0.70" 0.74" 0.70"
1064X6 3/8" 0.68" 0.67" 0.68"
1064X6X8X6 3/8" x 1/2" x 3/8" 0.76" 0.75" 0.86"
1064X8X8X4 1/2" x 1/2" x 1/4" 0.86" 0.80" 0.86"
1064X8X8X6 1/2" x 1/2" x 3/8" 0.86" 0.76" 0.86"
1064X8 1/2" 0.86" 0.86" 0.86"
