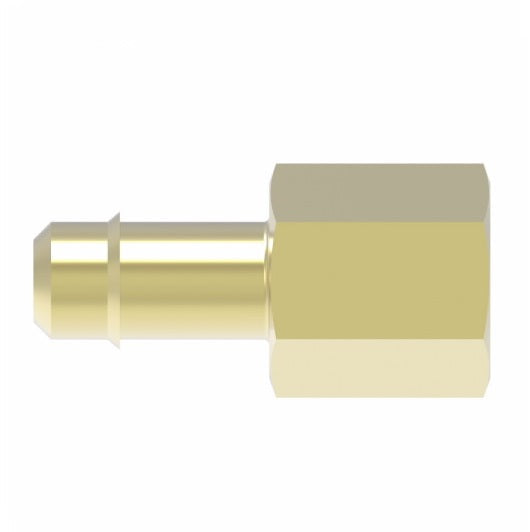

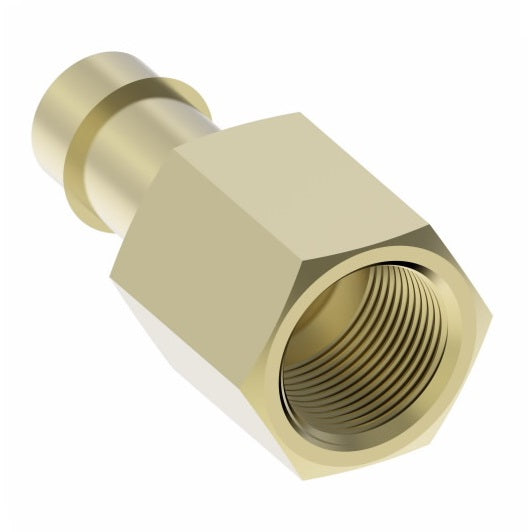

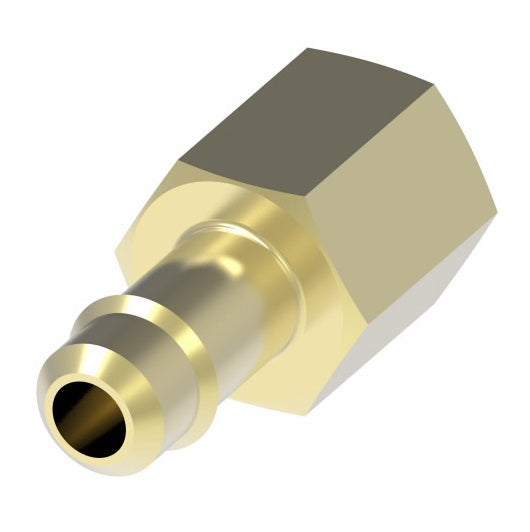

1066X4 by Danfoss | Mini-Barb Fitting | Female Connector (Short Thread) | for 1/4" Tubing OD | 1/8" Female Pipe | Brass

1066X4 by Danfoss | Mini-Barb Fitting | Female Connector (Short Thread) | for 1/4" Tubing OD | 1/8" Female Pipe | Brass

$11.19 - $11.19

$11.19

$11.19 - $11.19

$11.19

Aeroquip® by Danfoss
Mini-Barb Fitting - Female Connector

Quantity

Specifications for Variant SKU: 1066X4 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Hose Barb, 1/8in Female NPT
Material(s):	Brass
Compatible with the following Series:	PT240 Series

Applications:
Temperature control circuits, test apparatus, lubricant, coolant lines, pneumatic circuits, vacuum and fluid systems.
Advantages:
Quick connecting - no tube preparation. Hand assembly. Low cost one-piece push-on design. Barbed lip provides safe, positive connection. Compact size permits use in extremely tight areas. Excellent vibration resistance.
Used With:
PT240 Polyethylene tubing.
Material:
CA360 Brass
Pressure:
Will withstand burst pressures of plastic tubing.
Temperature Range:
Depends on tubing used.
Conformance:
An exclusive item with Danfoss. User approvals only.


Tubing OD	D	E	J
5/32"	0.062"	0.113"	0.380"
*3/16"	0.078"	0.125"	0.500"
1/4"	0.127"	0.189"	0.500"
3/8"	0.196"	0.270"	0.500"
1/2"	0.312"	0.395"	0.630"

*No barb on 3/16" size.


Brass Part Number	Tubing O.D.	Female Pipe Thread	Hex C	L
1066X4	1/4"	1/8"*	1/2"	1.00"
1066X4X4	1/4"	1/4"	11/16"	1.25"

* PTF Short Thread
