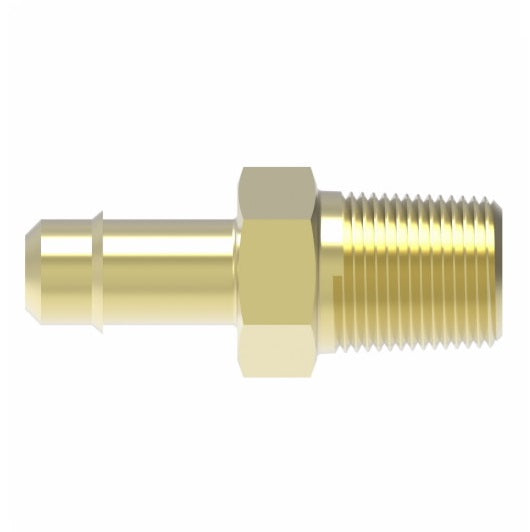

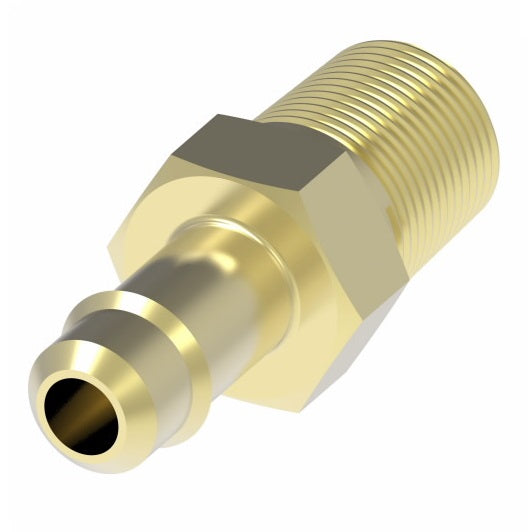

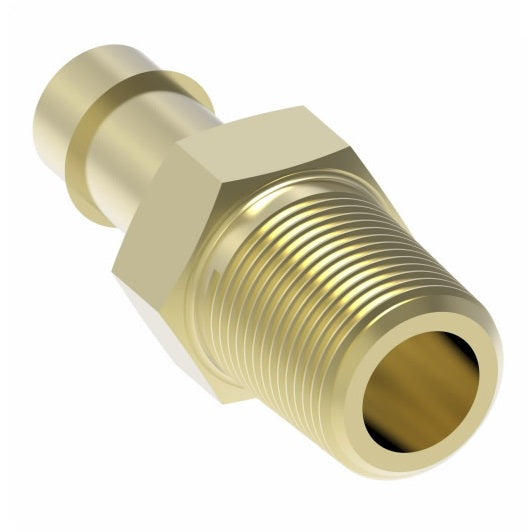

1068X6 by Danfoss | Mini-Barb Fitting | Male Connector | for 3/8" Tubing OD | 1/4" Male Pipe | Brass
1068X6 by Danfoss | Mini-Barb Fitting | Male Connector | for 3/8" Tubing OD | 1/4" Male Pipe | Brass
1068X6 by Danfoss | Mini-Barb Fitting | Male Connector | for 3/8" Tubing OD | 1/4" Male Pipe | Brass
1068X6 by Danfoss | Mini-Barb Fitting | Male Connector | for 3/8" Tubing OD | 1/4" Male Pipe | Brass

1068X6 by Danfoss | Mini-Barb Fitting | Male Connector | for 3/8" Tubing OD | 1/4" Male Pipe | Brass

$3.61 - $3.61
$3.61
$3.61 - $3.61
$3.61

Aeroquip® by Danfoss
Mini-Barb Fitting - Male Connector
Specifications for Variant SKU: 1068X6 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 1/4in Male NPT
Material(s): Brass
Compatible with the following Series: PT240 Series
Applications:
  • Temperature control circuits, test apparatus, lubricant, coolant lines, pneumatic circuits, vacuum and fluid systems.
Advantages:
  • Quick connecting - no tube preparation.
  • Hand assembly.
  • Low cost one-piece push-on design.
  • Barbed lip provides safe, positive connection.
  • Compact size permits use in extremely tight areas.
  • Excellent vibration resistance.
Used With:
  • PT240 Polyethylene tubing.
Material:
  • CA360 Brass
Pressure:
  • Will withstand burst pressures of plastic tubing.
Temperature Range:
  • Depends on tubing used.
Conformance:
  • An exclusive item with Danfoss. User approvals only.
Tubing OD D E J
5/32" 0.062" 0.113" 0.380"
*3/16" 0.078" 0.125" 0.500"
1/4" 0.127" 0.189" 0.500"
3/8" 0.196" 0.270" 0.500"
1/2" 0.312" 0.395" 0.630"

*No barb on 3/16" size.
Brass
Part Number		 Brass
with Sealant
Part Number		 Tubing O.D. Male Pipe Thread Hex
C		 D D1 Opt. L
1068X2.5X2 - 5/32" 1/8" 7/16" 0.06" 0.19" 0.98"
1068X4X1 - 1/4" 1/16" 5/16" 0.12" - 1.06"
1068X4 1068X4Z 1/4" 1/8" 7/16" 0.12" 0.19" 1.06"
1068X4X4 - 1/4" 1/4" 9/16" 0.12" 0.28" 1.28"
1068X6X2 - 3/8" 1/8" 7/16" 0.19" - 1.09"
1068X6 - 3/8" 1/4" 9/16" 0.19" 0.28" 1.28"
1068X8 - 1/2" 3/8" 11/16" 0.31" - 1.38"
