1070292 (120B) by PT-Coupling | Cam & Groove Adapter | Type B | 12" Coupler x 12" Male NPT | Aluminum/HB | Buna-N Seal

Save $1,027.08

$2,766.92

$2,766.92 - $2,766.92

$2,766.92

$1,739.84

$1,739.84 - $1,739.84

$1,739.84

PT Coupling

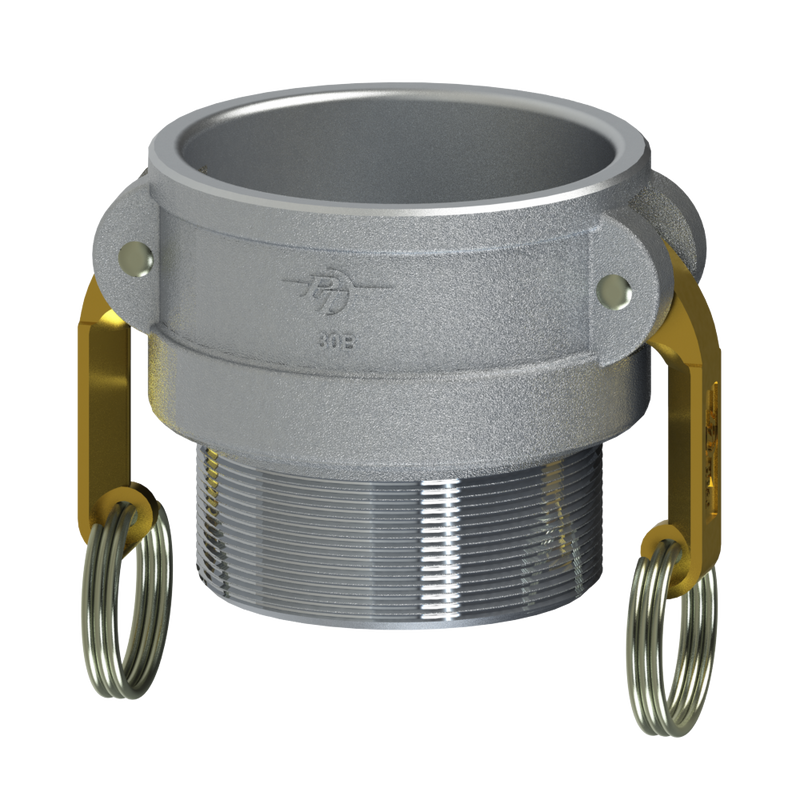

Cam and Groove (Camlock) Adapter | Type B | Coupler x Male NPT Thread | Aluminum/HB

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 1070292 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type B
Ends Configuration:	12in Female Cam & Groove, 12in Male NPT
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Overview:
PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
HB cam arms are made of Brass. 8, 10, and 12 inch couplers have a 4-cam design with the STA-LOK® positive locking feature. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA


Part Name	Item #	Coupler Size	Thread (Male NPT)	O.D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Engagement Length	Max. Allowable Working Press. (PSI)*	Weight
E05B	1070201	1/2"	1/2"	4.21"	1.82"	2.10"	1.25"	0.56"	1.03"	250 PSI	0.225 lbs.
1/2B	1070205	3/4"	1/2"	4.51"	2.11"	2.10"	1.25"	0.56"	0.97"	250 PSI	0.19 lbs.
07B	1070207	3/4"	3/4"	4.51"	2.11"	2.10"	1.25"	0.78"	0.97"	250 PSI	0.265 lbs.
10B	1070210	1"	1"	5.10"	2.44"	2.50"	1.56"	0.97"	1.19"	250 PSI	0.395 lbs.
12B	1070212	1-1/4"	1-1/4"	6.86"	3.26"	2.89"	1.84"	1.25"	1.44"	250 PSI	0.706 lbs.
15B	1070215	1-1/2"	1-1/2"	7.16"	3.56"	2.93"	1.88"	1.50"	1.48"	250 PSI	0.779 lbs.
20B	1070220	2"	2"	7.54"	3.94"	3.20"	2.15"	1.88"	1.75"	250 PSI	0.924 lbs.
25B	1070225	2-1/2"	2-1/2"	8.03"	4.43"	3.63"	2.18"	2.38"	1.75"	200 PSI	1.205 lbs.
30B	1070230	3"	3"	9.56"	5.46"	3.82"	2.27"	2.88"	1.84"	200 PSI	1.766 lbs.
40B	1070240	4"	4"	10.66"	6.56"	4.00"	2.34"	3.60"	1.87"	150 PSI	2.666 lbs.
50B	1070250	5"	5"	11.67"	7.57"	4.20"	2.44"	4.50"	1.97"	75 PSI	3.086 lbs.
60B	1070260	6"	6"	16.26"	10.16"	4.52"	2.62"	5.60"	2.19"	75 PSI	5.25 lbs.
80B	1070280**	8"	8"	18.23"	12.13"	4.80"	2.72"	7.50"	2.15"	50 PSI	8.886 lbs.
100B	1070290**	10"	10"	20.66"	14.56"	5.50"	3.20"	9.40"	2.55"	50 PSI	13.161 lbs.
120B	1070292**	12"	12"	22.72"	16.62"	5.70"	3.20"	11.40"	2.55"	50 PSI	16.336 lbs.

**8, 10, and 12 inch couplers have a 4-cam design with the STA-LOK® positive locking feature.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.

Shop Parts by PT-Coupling
