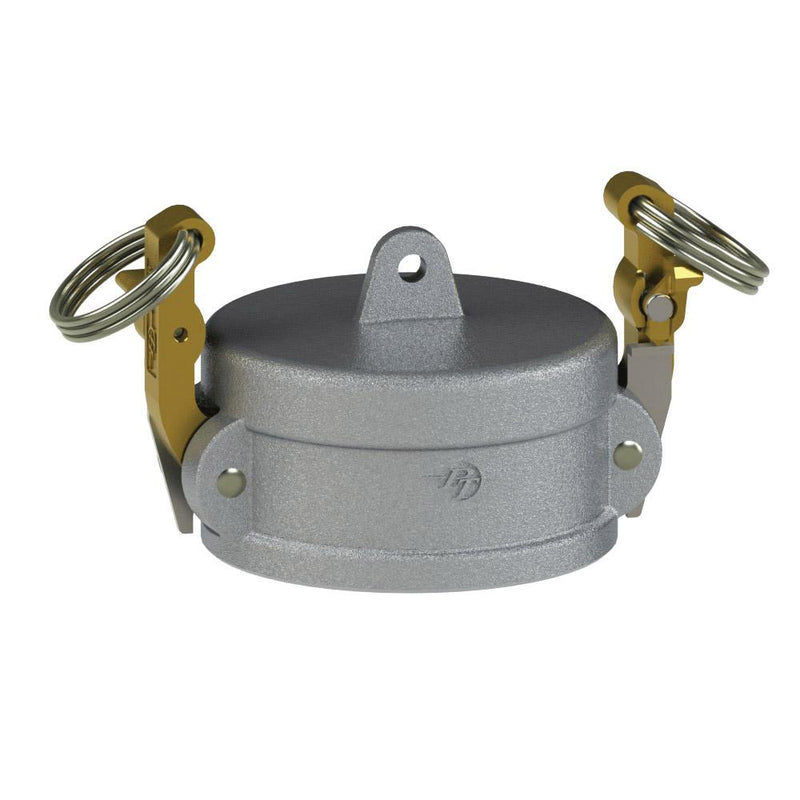

1071110L2 (10V SLII) by PT-Coupling | STA-LOK® II Cam & Groove Dust Cap | Type V | 1" Coupler | Aluminum/SLB

1071110L2 (10V SLII) by PT-Coupling | STA-LOK® II Cam & Groove Dust Cap | Type V | 1" Coupler | Aluminum/SLB

Save $23.01 Save $23.01
$62.00
$62.00 - $62.00
$62.00
$38.99
$38.99 - $38.99
$38.99

PT Coupling
STA-LOK® II Cam & Groove (Camlock) Dust Cap | Type V | Aluminum/SLB

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 1071110L2 PT-Coupling
Series: STA-LOK II
Cam Type: Type DC
Ends Configuration: 1in Female Cam & Groove
Material(s): Aluminum
Overview:
  • STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
  • SLB cam arms are made of Brass.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Chain Lug
Extension
(G)		 Max. Allowable
Working Press.
(PSI)*
10V SLII 1071110L2 1" 5.10" 2.44" 1.60" 0.62" 250 PSI
12V SLII 1071112L2 1-1/4" 6.86" 3.26" 1.89" 0.60" 250 PSI
15V SLII 1071115L2 1-1/2" 7.16" 3.56" 1.96" 0.86" 250 PSI
20V SLII 1071120L2 2" 7.54" 3.94" 2.25" 0.76" 250 PSI
25V SLII 1071125L2 2-1/2" 8.03" 4.43" 2.28" 0.90" 200 PSI
30V SLII 1071130L2 3" 9.56" 5.46" 2.27" 1.03" 200 PSI
40V SLII 1071140L2 4" 10.66" 6.56" 2.34" 0.99" 150 PSI
50V SLII 1071150L2 5" 11.67" 7.57" 2.44" 1.15" 75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
