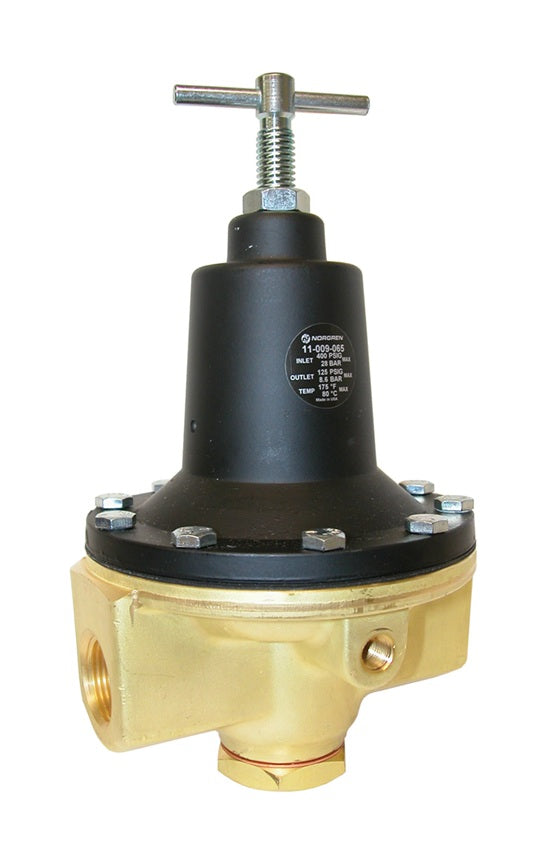

11-009-081 by Dixon Valve | 11-009 Series 1 | Water Regulator | 1" Port Size | 27.5 GPM | without Gauge | 5-125 PSIG Pressure Range

Save $106.06

$1,074.39

$1,074.39 - $1,074.39

$1,074.39

$968.33

$968.33 - $968.33

$968.33

Dixon Valve
11-009 Series 1 | Water Regulator

Balanced valve minimizes effects of the inlet pressure variations on outlet pressure.

Pressure range: 5-125 PSI

Quantity

Specifications for Variant SKU: 11-009-081 Dixon
Series:	11-009 Series 1

Features:
T-handle adjustment. Non-relieving type. Body, valve, and bottom plug are brass; bonnet is aluminum and steel. Elastomers are nitrile.
Specifications:
Pressure range: 5-125 PSI Inlet pressure: 400 PSI Temperature Range: Water Service: 35° to 200°F (2°C to 93°C) Air Service: -30° to 200°F (-34°C to 93°C) Flow ratings given at 150 PSIG inlet pressure.
Dimensions:

Without Gauge Part Number	Port Size	Flow (GPM)
11-009-065	3/4"	27.5 GPM
11-009-081	1"	27.5 GPM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
