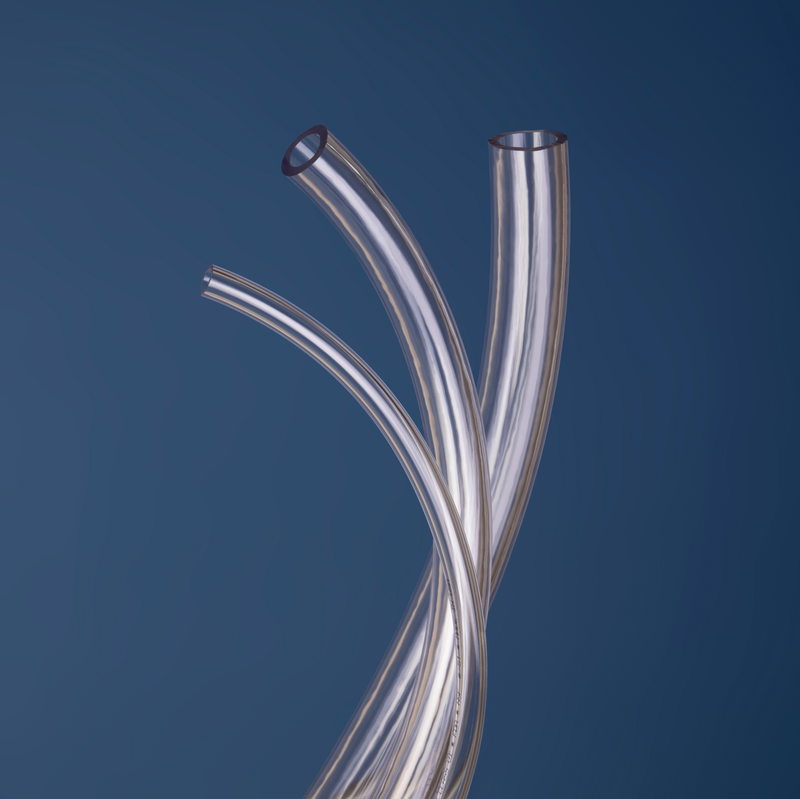

NewAge Industries - PVC Tubing - CLEARFLO® 70

Package Quantity: 100 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1130575-100 NewAge \| 100 \|
Brand:	Clearflo
Series:	CLEARFLO 70 PHTHALATE FREE
Hose Color(s):	Clear/Semi-Clear
Internal Diameter:	0.5in
Outer Diameter:	1in
Tubing Construction:	PVC
Applicable Specs & Approvals:	Applicable FDA Requirements, Phthalate Free, REACH, RoHS, NSF 51

Part Number	ID (in.)	OD (in.)	Wall (in.)	Working PSI (at 70°F)	Weight (lbs./100 ft.)
1130071-100	1/8	1/4	1/16	141	1.9
1130113-100	5/32	11/32	3/32	159	3.8
1130134-100	3/16	1/4	1/32	53	1.1
1130155-100	3/16	5/16	1/16	106	2.5
1130183-100	3/16	3/8	3/32	141	4.2
1130204-100	3/16	7/16	1/8	169	6.3
1130225-50 \| 1130225-100	1/4	3/8	1/16	85	3.1
1130253-100	1/4	7/16	3/32	116	5.2
1130281-100	1/4	1/2	1/8	141	7.5
1130302-100	5/16	7/16	1/16	71	3.8
1130323-100	5/16	1/2	3/32	97	6.1
1130344-100	5/16	9/16	1/8	121	8.8
1130365-100 \| 1130365-500	3/8	1/2	1/16	70	4.4
1130386-100	3/8	9/16	3/32	90	7.1
1130407-100	3/8	5/8	1/8	111	10
1130428-100	3/8	3/4	3/16	141	17
1130477-100	7/16	11/16	1/8	94	11.3
1130498-100 \| 1130498-500	1/2	5/8	1/16	52	5.7
1130519-100	1/2	11/16	3/32	67	9
1130547-50 \| 1130547-100	1/2	3/4	1/8	85	12.6
1130575-100	1/2	1	1/4	141	30.1
1130596-100	9/16	3/4	3/32	60	9.9
1130624-100	5/8	3/4	1/16	39	6.9
1130645-100	5/8	13/16	3/32	55	10.9
1130666-100	5/8	7/8	1/8	71	15.1
1130687-100	5/8	15/16	5/32	85	19.7
1130708-100	3/4	7/8	1/16	33	8.2
1130729-50 \| 1130729-100 \| 1130729-300	3/4	1	1/8	61	17.6
1130750-100	3/4	1-1/16	5/32	73	22.8
1130813-100	7/8	1-1/8	1/8	53	20.1
1130834-50 \| 1130834-100	1	1-1/4	1/8	42	22.6
1130862-100	1	1-3/8	3/16	67	35.8
1130883-100	1	1-1/2	1/4	85	50.2
1130911-100	1-1/4	1-1/2	1/8	39	27.6
1130953-50	1-1/4	1-3/4	1/4	71	60.3
1130974-100	1-1/2	1-3/4	1/8	33	32.7
1130995-100	1-1/2	1-7/8	3/16	47	50.9
1131037-50	1-1/2	2	1/4	61	70.3
1131058-50	1-3/4	2	1/8	28	37.7
1131079-50	1-3/4	2-1/4	1/4	53	80.4
1131100-50	2	2-1/4	1/8	25	42.7
1131121-50	2	2-1/2	1/4	47	90.4

Add length suffix to part number when ordering. Example: 100 ft. of 1” I.D. x 1-1/4” O.D. tubing is part number 113 0834-100.
Working pressures are calculated from burst testing using a 3:1 safety factor. Application testing is recommended.
Cut coils are available from coils of 100 ft. or less; charges apply — call for details. Coils over 100 ft. are sold by standard coil length only.
ID is the critical dimension for fittings application.
[B] Limited stock item; lead times and minimums may apply – call for details.
