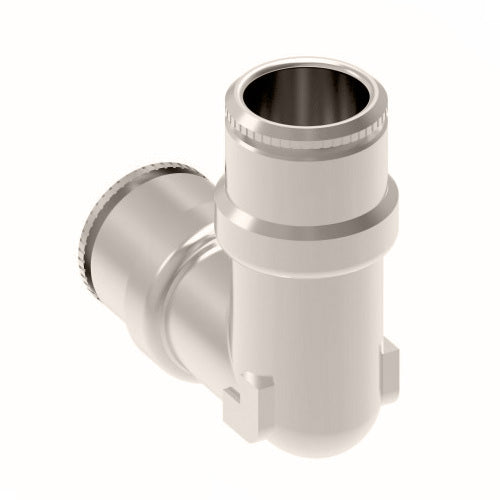

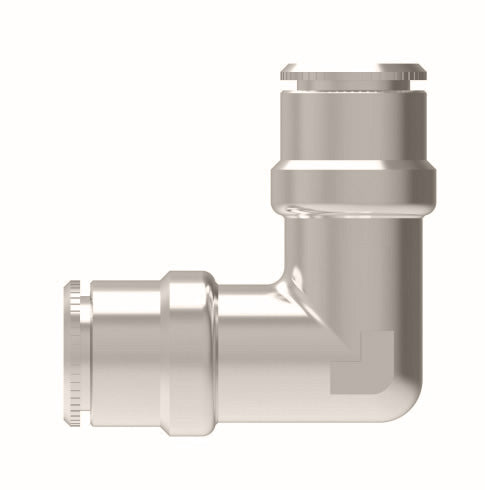

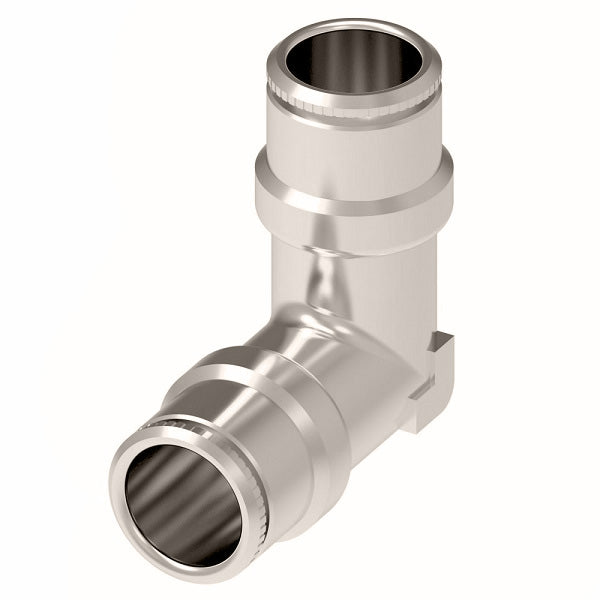

1165X4M by Danfoss | Metric Push to Connect Adapter | Union 90° Elbow | 4mm Tube OD x 4mm Tube OD | Nickel Plated Brass
1165X4M by Danfoss | Metric Push to Connect Adapter | Union 90° Elbow | 4mm Tube OD x 4mm Tube OD | Nickel Plated Brass
1165X4M by Danfoss | Metric Push to Connect Adapter | Union 90° Elbow | 4mm Tube OD x 4mm Tube OD | Nickel Plated Brass
1165X4M by Danfoss | Metric Push to Connect Adapter | Union 90° Elbow | 4mm Tube OD x 4mm Tube OD | Nickel Plated Brass

1165X4M by Danfoss | Metric Push to Connect Adapter | Union 90° Elbow | 4mm Tube OD x 4mm Tube OD | Nickel Plated Brass

$10.96 - $10.96
$10.96
$10.96 - $10.96
$10.96

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Union
Specifications for Variant SKU: 1165X4M Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 4mm Push-to-Connect, 4mm Push-to-Connect, Some Ends Match
Material(s): Nickel Plated Brass
Compatible with the following Series: MTP160 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		     M5x.8
BSPT 1/8 (2PT) 1/4 (4PT)   3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP)   3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 C F M SW
(mm)
1165X4M 4mm 3.5mm 9.0mm 17.5mm 8mm
1165X5M 5mm 6.0mm 11.0mm 21.0mm 9mm
1165X8M 8mm 5.0mm 14.0mm 22.5mm 11mm
1165X10M 10mm 6.5mm 16.5mm 26.5mm 13mm
1165X12M 12mm 7.5mm 19.5mm 28.5mm 15mm
