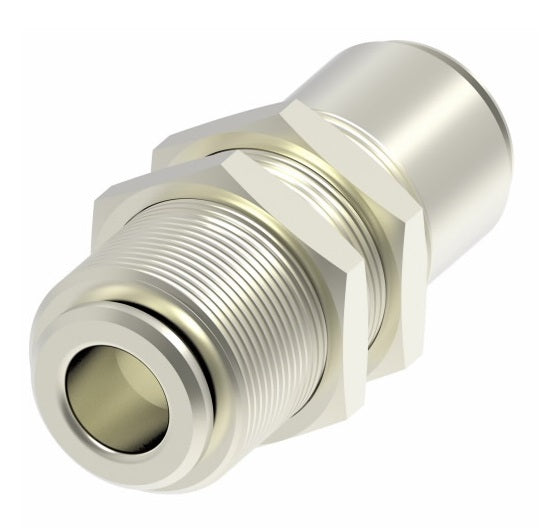

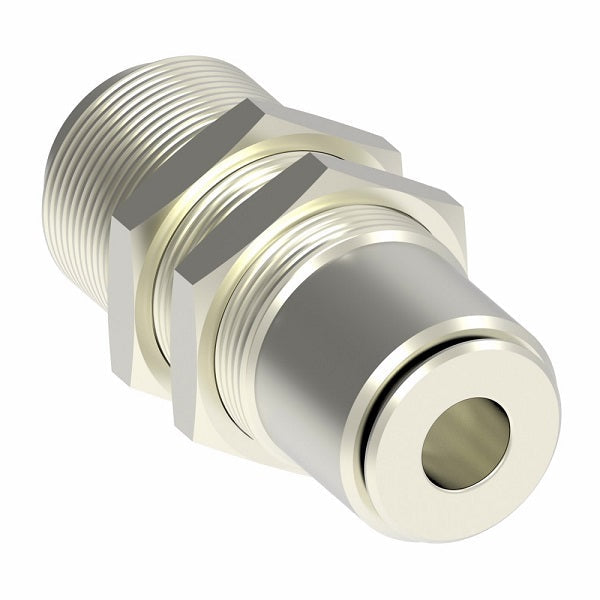

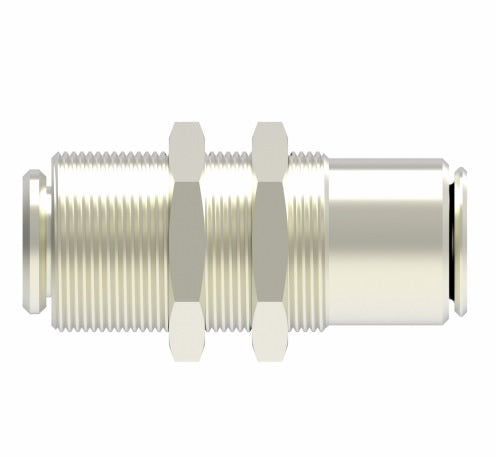

1174X4 by Danfoss | Push to Connect Adapter | Bulkhead Union | 1/4" Tube OD x 1/4" Tube OD | Nickel Plated Brass
1174X4 by Danfoss | Push to Connect Adapter | Bulkhead Union | 1/4" Tube OD x 1/4" Tube OD | Nickel Plated Brass
1174X4 by Danfoss | Push to Connect Adapter | Bulkhead Union | 1/4" Tube OD x 1/4" Tube OD | Nickel Plated Brass
1174X4 by Danfoss | Push to Connect Adapter | Bulkhead Union | 1/4" Tube OD x 1/4" Tube OD | Nickel Plated Brass

1174X4 by Danfoss | Push to Connect Adapter | Bulkhead Union | 1/4" Tube OD x 1/4" Tube OD | Nickel Plated Brass

$12.48 - $12.48
$12.48
$12.48 - $12.48
$12.48

Aeroquip® by Danfoss
Push to Connect Adapter - Bulkhead Union
Push to Connect End x Push to Connect End
Straight
Specifications for Variant SKU: 1174X4 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Tube Compression, 1/4in Tube Compression, Some Ends Match
Material(s): Nickel Plated Brass
Compatible with the following Series: PT230 Series  |   TP160 Series  |   PT240 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
  • PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
  • Fittings rated at 29.5 inches of mercury vacuum.
Nickel Plated Brass
Part Number 		Tube O.D. B F L N Max
(mm)		 SW
(mm)		 SW1 T
1174X2 1/8" M10x1 0.34" 1.14" 0.55" 0.42" 14 14 0.91"
1174X2.5 5/32" M10x1 0.34" 1.14" 0.55" 0.41" 14 14 0.87"
1174X4 1/4" M14x1 0.49" 1.32" 0.64" 0.45" 17 17 0.93"
1174X5 5/16" M16x1 0.56" 1.42" 0.69" 0.45" 19 19 0.93"
1174X6 3/8" M18x1 0.62" 1.61" 0.79" 0.51" 22 22 1.02"
1174X8 1/2" M20x1 0.74" 1.71" 0.83" 0.57" 24 24 1.08"
