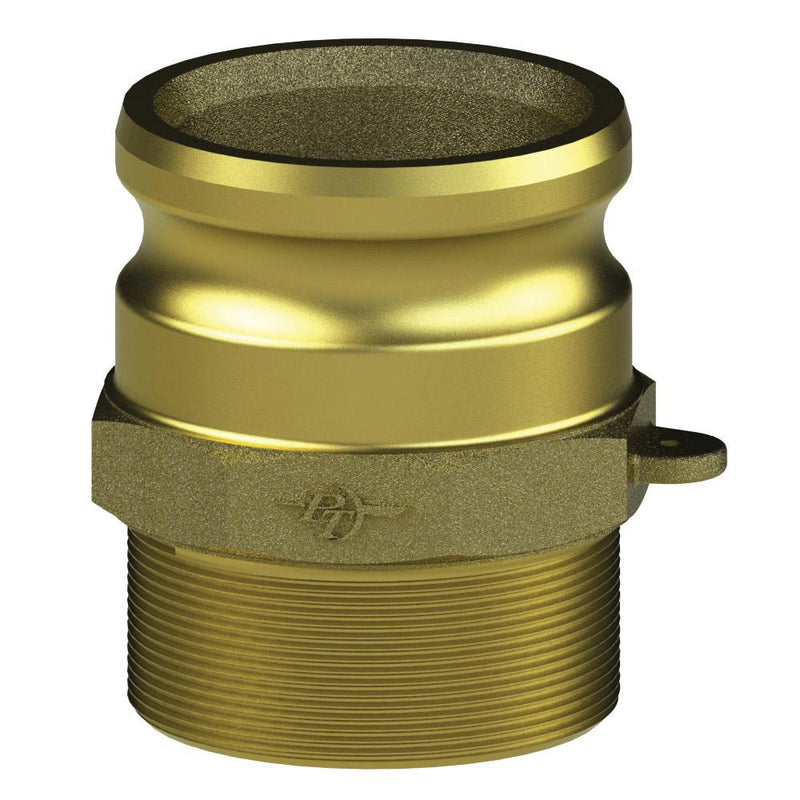

1200650 (50F) by PT-Coupling | Cam & Groove Adapter | Type F | 5" Adapter x 5" Male NPT | Brass

Name: 1200650 (50F) by PT-Coupling | Cam & Groove Adapter | Type F | 5" Adapter x 5" Male NPT | Brass
Brand: PT-Coupling
SKU: 1200650 PT-Coupling
Price: 323.15 USD
Availability: InStock

Save $190.77

$513.92

$513.92 - $513.92

$513.92

$323.15

$323.15 - $323.15

$323.15

PT Coupling
Cam and Groove (Camlock) Adapter | Type F | Adapter x Male NPT | Brass

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 1200650 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type F
Ends Configuration:	5in Male Cam & Groove, 5in Male NPT
Material(s):	Brass

Overview:
PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals. Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products. Couplings not interchangeable in the industry are sizes 8" through 12". Made in the USA


Part Name	Item #	Adapter Size	Male NPT Thread	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Max. Across Corners (F)	Chain Lug Extension (G)	Engagement Length	Max. Allowable Working Press. (PSI)*
E05F	1200601	1/2"	1/2"	1.96"	1.26"	0.53"	1.12"	-	1.03"	250 PSI
1/2F	1200605	3/4"	1/2"	2.47"	1.67"	0.56"	1.42"	-	0.97"	250 PSI
07F	1200607	3/4"	3/4"	2.47"	1.67"	0.75"	1.42"	-	0.97"	250 PSI
10F	1200610	1"	1"	2.89"	1.99"	0.85"	1.75"	0.34"	1.19"	250 PSI
12F	1200612	1-1/4"	1-1/4"	3.23"	2.23"	1.04"	2.16"	0.34"	1.44"	250 PSI
15F	1200615	1-1/2"	1-1/2"	3.29"	2.31"	1.34"	2.44"	0.30"	1.48"	250 PSI
20F	1200620	2"	2"	3.57"	2.57"	1.72"	2.84"	0.28"	1.75"	250 PSI
25F	1200625	2-1/2"	2-1/2"	4.18"	2.78"	2.14"	3.45"	0.29"	1.75"	200 PSI
30F	1200630	3"	3"	4.37"	2.87"	2.80"	4.07"	0.44"	1.84"	200 PSI
40F	1200640	4"	4"	4.79"	3.19"	3.78"	5.27"	0.40"	1.87"	150 PSI
50F	1200650	5"	5"	4.91"	3.21"	4.79"	6.39"	0.16"	1.97"	75 PSI
60F	1200660	6"	6"	5.20"	3.40"	5.84"	7.70"	0.60"	2.19"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
