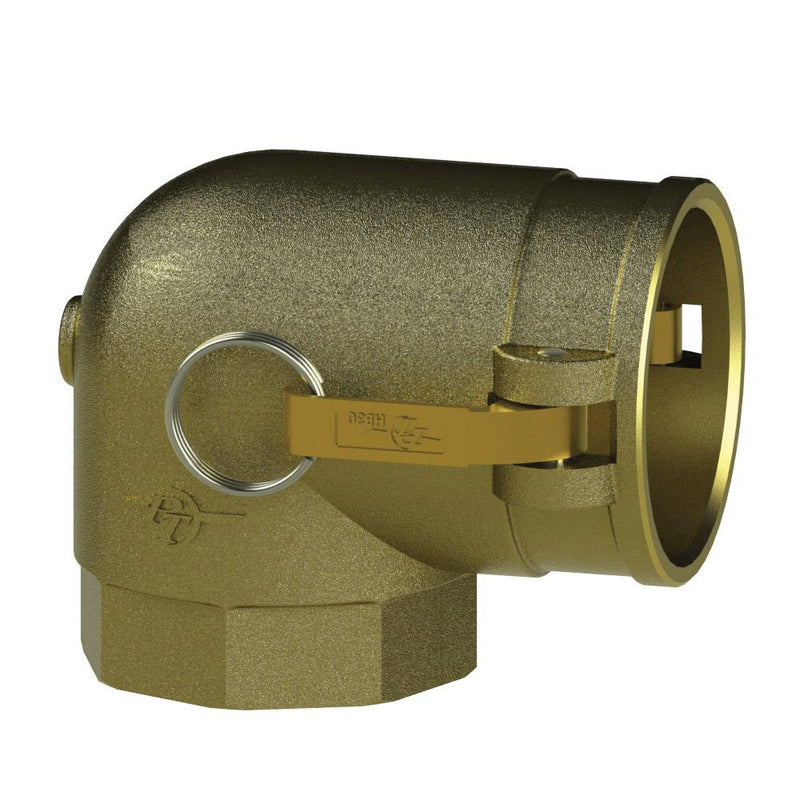

1200820 (20H) by PT-Coupling | Cam & Groove Adapter | Type H | 90° Elbow | 2" Female NPT x 2" Coupler | Brass/HB | Buna-N Seal

Save $85.17

$229.45

$229.45 - $229.45

$229.45

$144.28

$144.28 - $144.28

$144.28

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 1200820 PT-Coupling
Shape (Orientation):	90 Degree Elbow
Cam Type:	Type D
Ends Configuration:	2in Female NPT, 2in Female Cam & Groove
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
HB cam arms are made of Brass. Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals. Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Orientation	Female NPT Thread	Coupler Size	Max. Allowable Working Press. (PSI)*
15H	1200815	90°	1-1/2"	1-1/2"	250 PSI
20H	1200820	90°	2"	2"	250 PSI
30H	1200830	90°	3"	3"	200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
